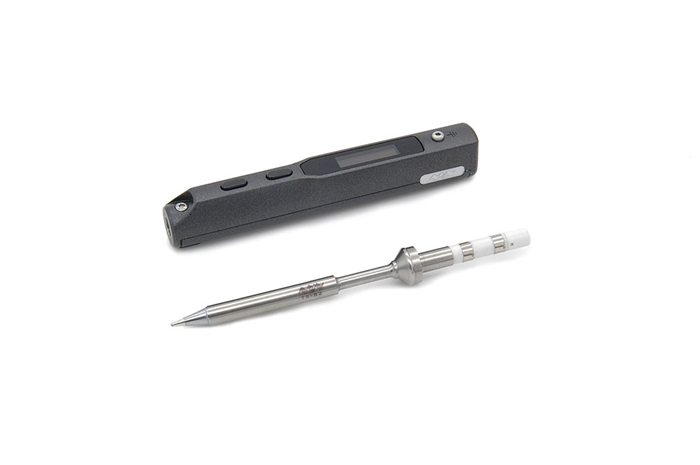

TS100 employs 304 stainless steel nested shell of Polycarbonate plastic;
It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with smart chip;
Temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C;
High heating efficiency, heating up from 30 ℃ to 300 ℃ only takes about 10 seconds;
Adopt safety circuit design, anti-static structure, usage safe;
Have sleep mode and automatic over-heating warning；
Through edit the parameter file, custom your own temperature curve and buttons function;
Open source for writing your own App.

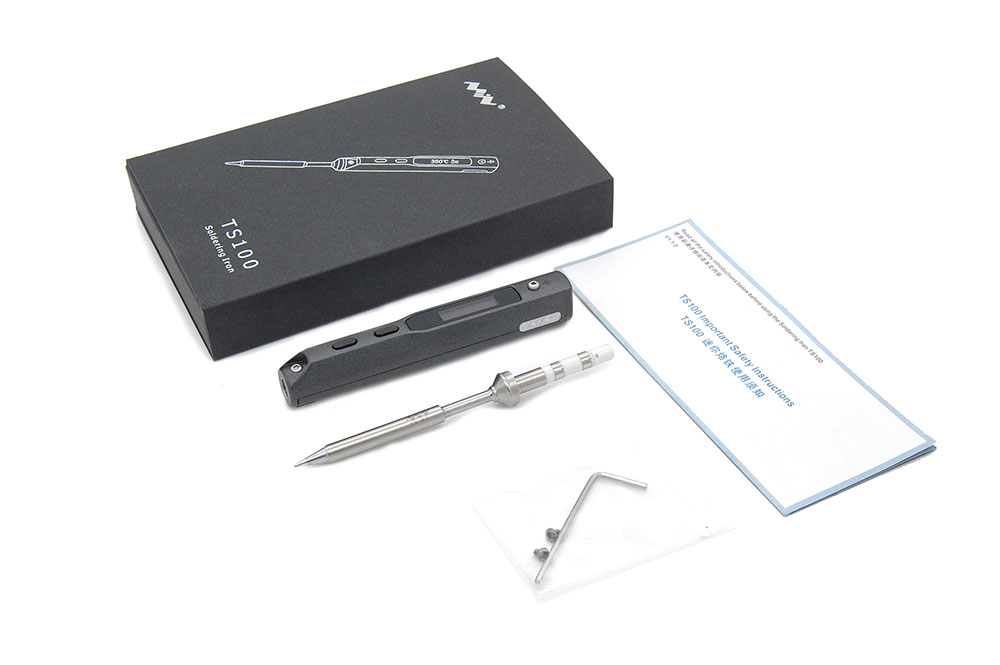

TS100 Controller (Black Color) ✖ 1

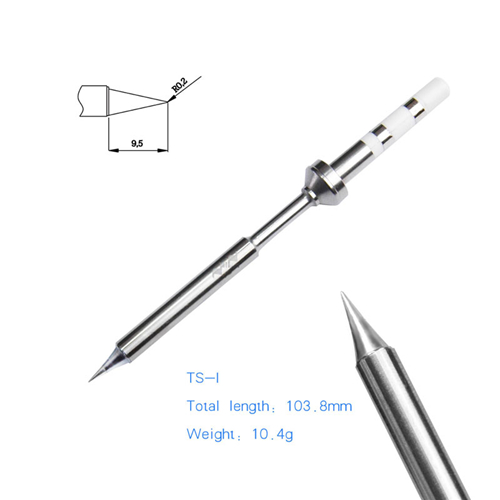

TS100 Soldering Tip (B2 / BC2 / I)
Allen key ✖ 1
Safety Instructions ✖ 1
Gross Weight：82g (including packaging)

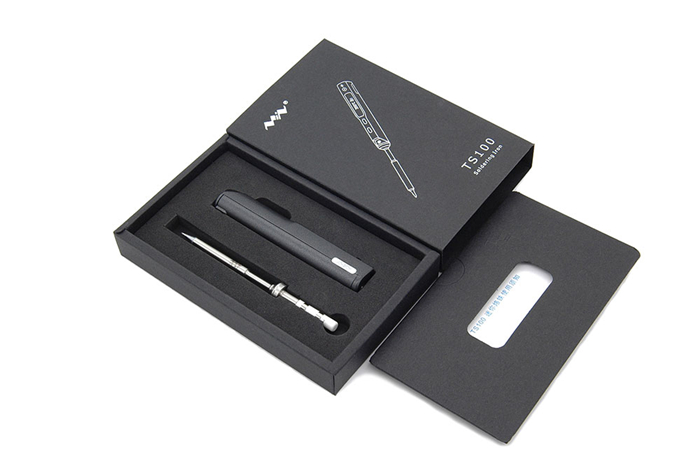

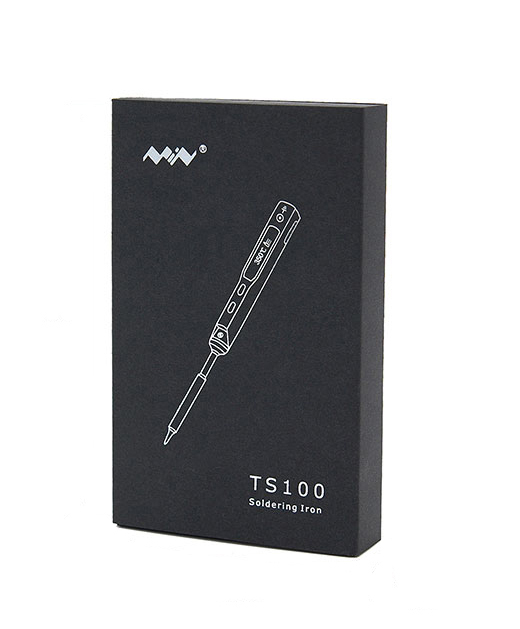

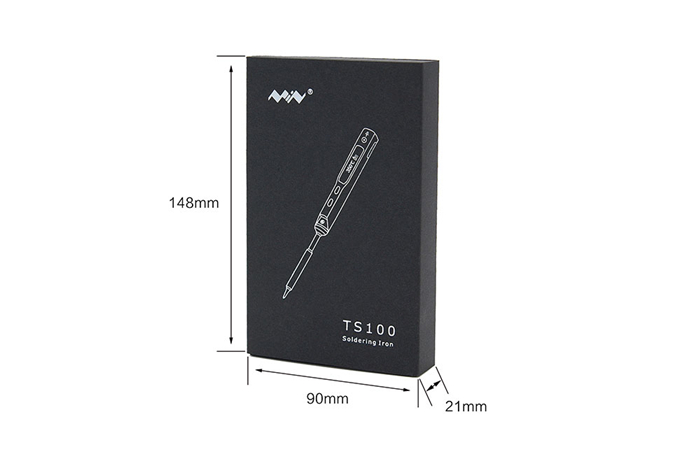

Package Size：148mm ✖ 90mm ✖ 21mm
| Power | 65W(Max) | Max Operation Ambient Temperature | 40°C |
| Temperature Stability | ±2% | Soldering Tip Resistance to Ground | <2Ω |
| Temperature Range | 100°C~400°C(Max) |

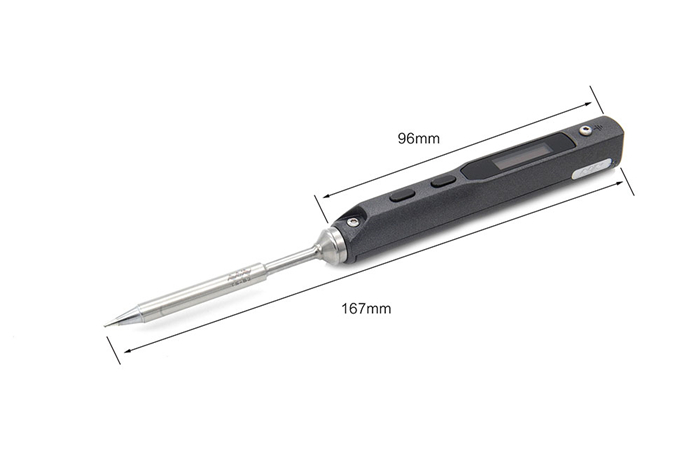

| Screen | OLED Screen | Control Part | Length 96mm, Diameter 16.5mm |
| Power Interface | DC5525 Power Interface | Net Weight | 21g (Control Part) |
| Certification | Compliant with EU Certification CE FCC | Data Transfer Interface | Micro USB Interface |
