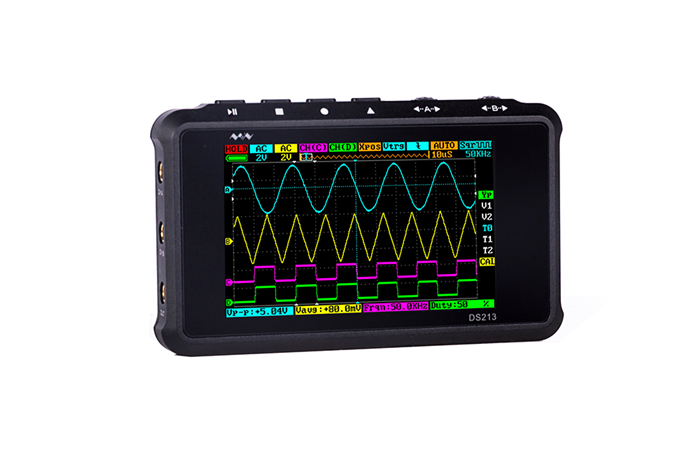

It is a pocket size digital storage oscilloscope is small enough to take it anywhere，and fulfills basic electronic engineering requirements;
DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core;
DS213 uses FPGA to manage external ADC’s control and data cache mode;
It provides 4 application partitions for loading and upgrading up to 4 different application firmware;
Inbuilt 8MB U-disk storage for waveform data and images;
Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation;
The oscilloscope code application layer is open source;
Users can develop firmware according to different needs;
Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.

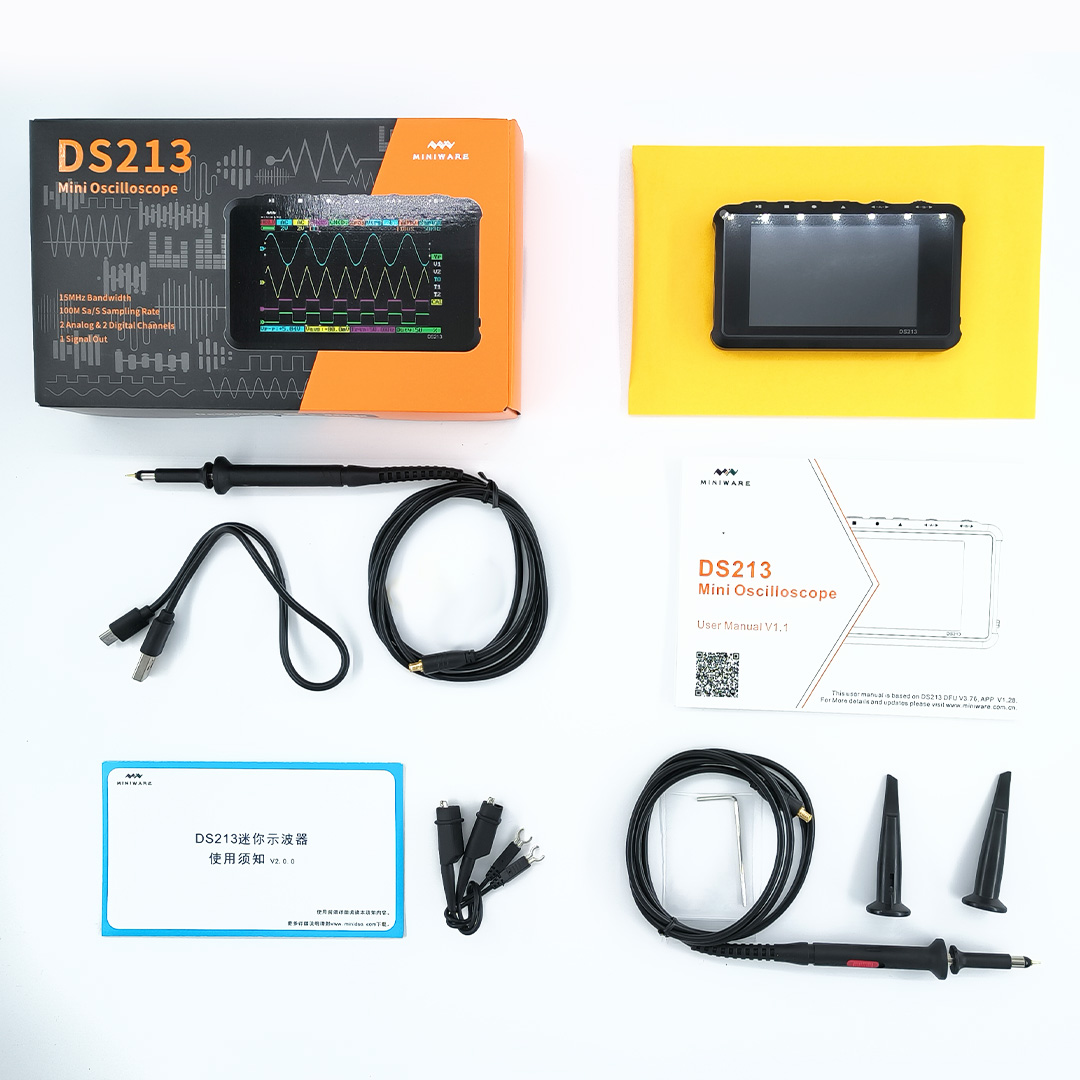

DS213 Mini Oscilloscope ✖ 1
x1x10 Probe ✖ 2
USB Cable ✖ 1
User Manual ✖ 1
Gross Weight：410g（including package）
Package Size：197mm ✖ 108mm ✖ 45mm
| Operation | Button, Encoder | MCU | STM32F103VE |
| Channels | 2 Analog channels+2 Digital channels | ADC | HWD9288 |
| Horizontal Sensitivity | 100nS/Div~1S/Div. (1-2-5 sequence step) | Analog Bandwidth | 15MHz |
| Vertical Sensitivity |
10mV-10V/div（1-2-5 STEP）（with X1 Probe Analyzer） 100mV-100V/div（1-2-5 STEP）（with X10 Probe Analyzer） |
Max Sample Rate | 100MSa/s |
| Trigger Mode |
Ascend / Descend Edge Trigger Mode, Positive / Negative Pulse Trigger, Logic Trigger |
Max Sample Memory Depth | 4K |
| Math Waveforms | INV A, INV B, A+B, A-B, C&D, C|D, RecA, RecB, RecC, RecD | Analog Input Impedance | 1MΩ |
| Inbuilt Signal Generator | Sine / Square / Triangle / Sawtooth Wave | Coupling | DC / AC |
| Synchronous Mode | Auto, Normal, Single, Slow | AUTO_FIT | NONE |
| Auto Measurement |
Signal Sequence / Cycle / Duty Ratio, Peak Voltage / Virtual Value / Max Value / Min Value / Average |
APP Installed | 2 |
| Open Source | Application Layer Open-Source |
| Data Transfer Interface | Micro USB Port | Screen Size | 3.0'' |
| Storage | 8MB USB Flash Disk Memory | Screen Resolution | 400 ✖ 240 |
| Net Weight | 129g (with Battery) | Battery | 1000mAh |

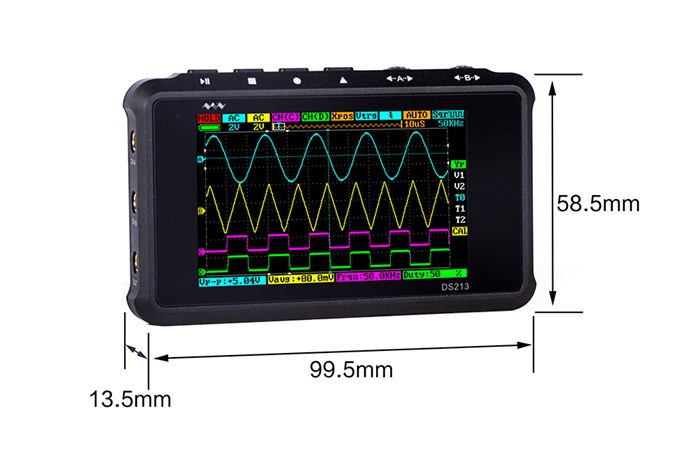

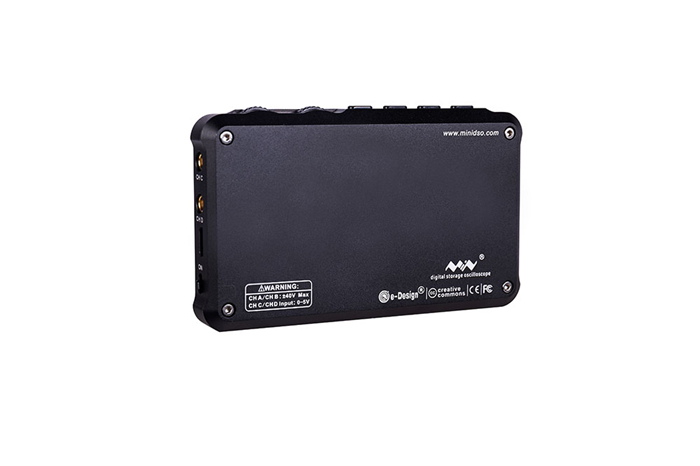

| Certification | Compliant with EU Certification CE FCC | Dimension | 99.5mm ✖ 58.5mm ✖ 13.5mm |
