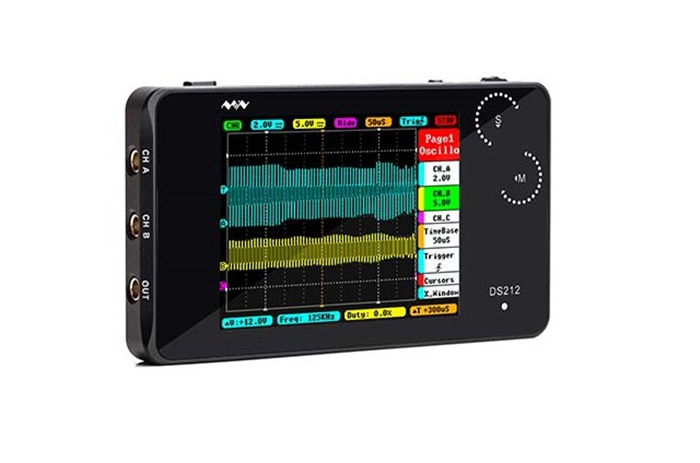

It is a pocket size digital storage oscilloscope is small enough to take it anywhere，and fulfills basic electronic engineering requirements;
Dual trace three lines, new kind of system interface, capacitive convenient operation;
Inbuilt 8MB U-disk storage for waveform data and images;
Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation;
The oscilloscope code application layer is open source;
Users can develop firmware according to different needs;
Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.

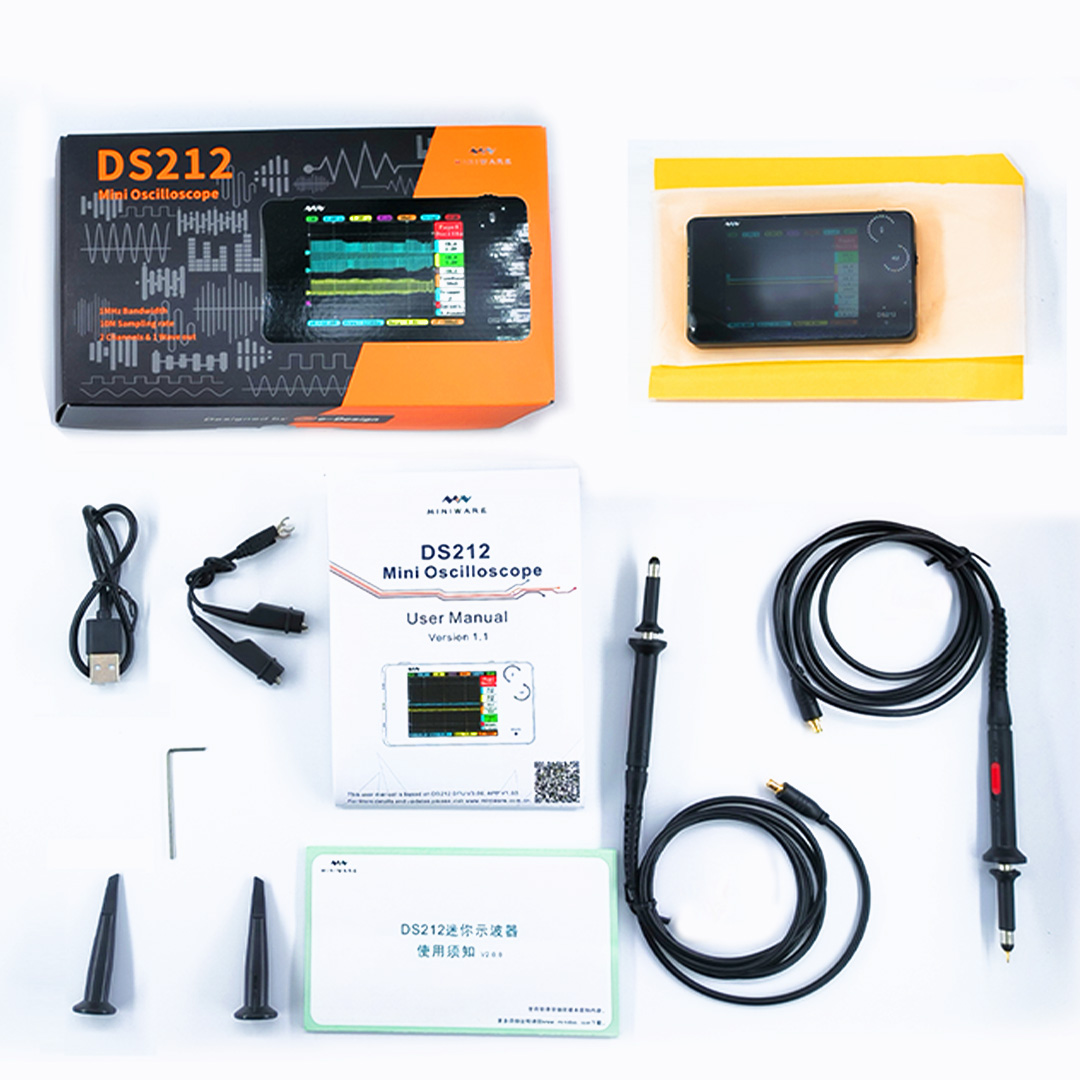

DS212 Mini Oscilloscope ✖ 1
x1x10 Probe ✖ 2
USB Cable ✖ 1
User Manual ✖ 1
Gross Weight：412g（including package）
Package Size：202mm ✖ 112mm ✖ 45mm
| Operation | Button, Encoder | MCU | STM32F303VC |
| Channels | 2 Analog channels | ADC | MCU Internal ADC |
| Horizontal Sensitivity | 1uS/Div~2S/Div(1-2-5 sequence step) | Analog Bandwidth | 1MHz |
| Vertical Sensitivity | 20mv/Div~10V/Div(1-2-5 sequence step) |
Max Sample Rate | 10MSa/s |
| Trigger Mode | Ascend / Descend Edge Trigger Mode |
Max Sample Memory Depth | 8K |
| Math Waveforms | -A, -B, A+B, A-B, RecA, RecB, RecC | Analog Input Impedance | 1MΩ |
| Inbuilt Signal Generator | Sine / Square / Triangle / Sawtooth Wave | Coupling | DC / AC |
| Synchronous Mode | Auto, Normal, Single, Scan, None | AUTO_FIT | AUTO_FIT |
| Auto Measurement |
Signal Sequence / Cycle / Duty Ratio, Peak Voltage / Virtual Value / Max Value / Min Value / Average |
APP Installed | 2 |
| Open Source | Application Layer Open-Source |
| Data Transfer Interface | Micro USB Port | Screen Size | 2.8'' |
| Storage | 8MB USB Flash Disk Memory | Screen Resolution | 320 ✖ 240 |
| Net Weight | 88g (with Battery) | Battery | 500mAh |

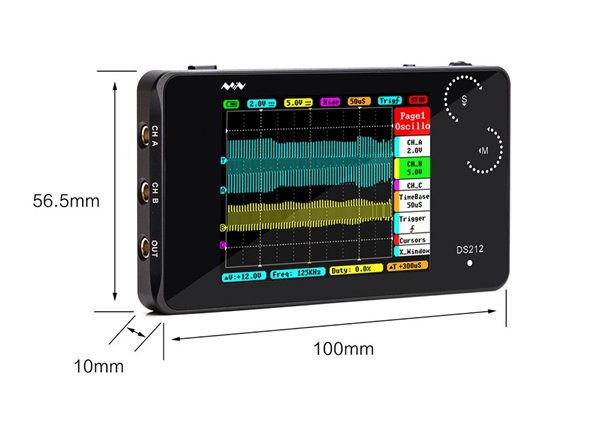

| Certification | Compliant with EU Certification CE FCC | Dimension | 100mm ✖ 56.5mm ✖ 10.7mm |
