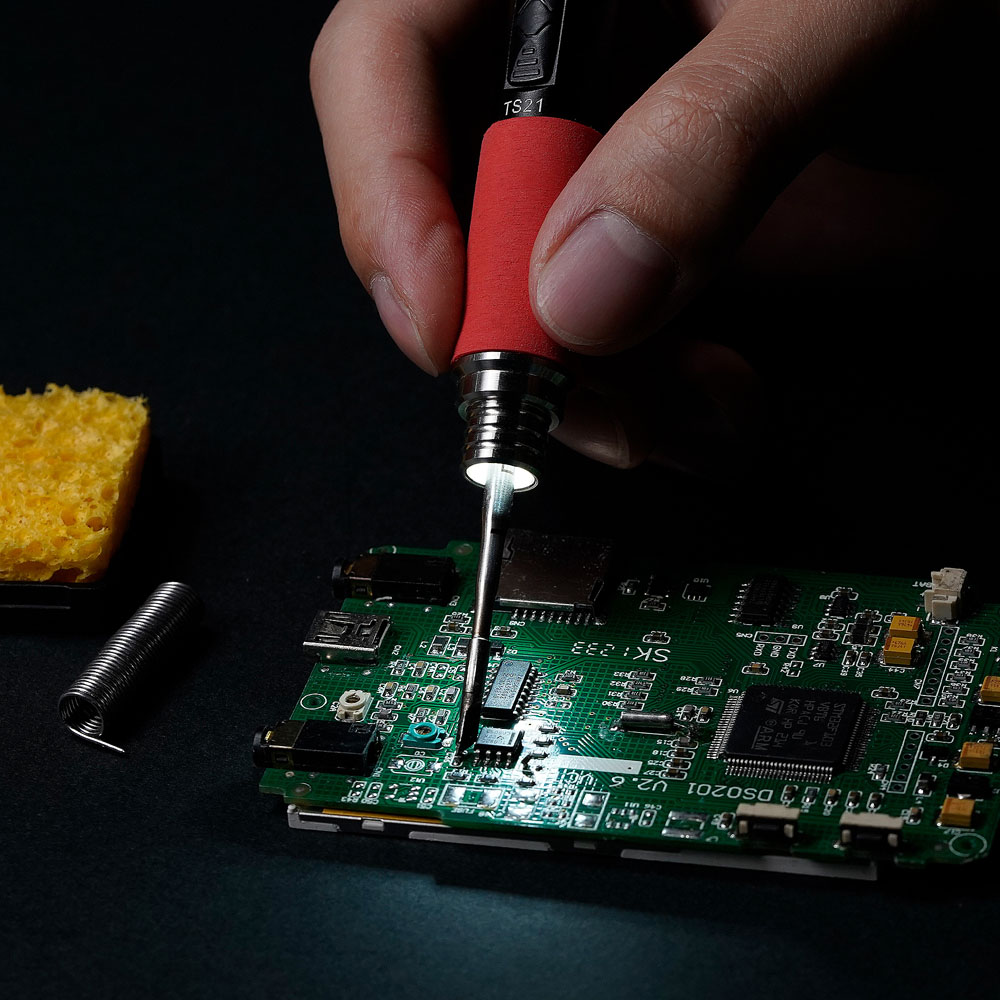

The TS21 Precision Soldering Iron features an innovative built-in fill light at the tip, making precise soldering easy even in low-light conditions and enhancing both convenience and safety during use.
Its rapid heating performance allows it to reach 300°C in just 3 seconds, greatly improving efficiency.
The temperature range from 100°C to 450°C to meet different soldering needs.
The built-in accelerometer automatically enters sleep mode when not in use, preventing tip damage from prolonged dry heating and extending the iron’s lifespan.
The controller is made of aluminum alloy, precision-machined via CNC.

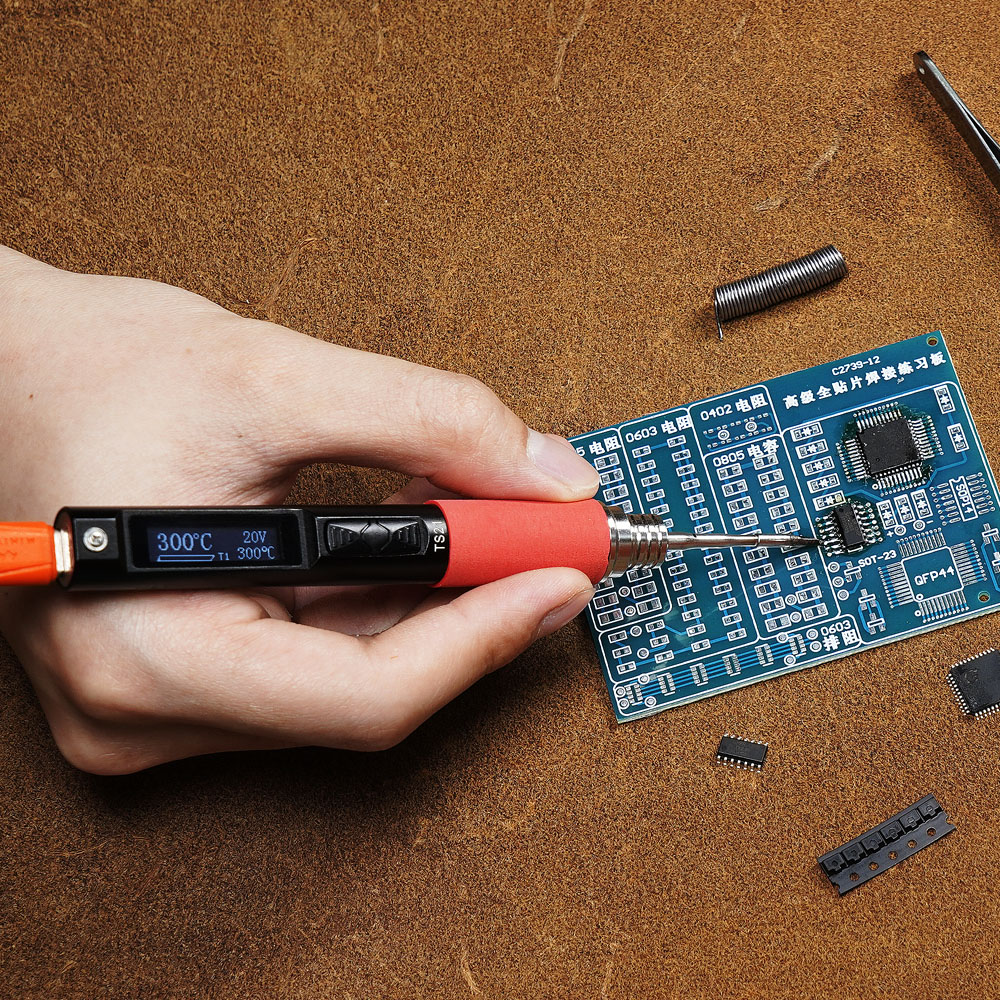

The device is equipped with a 0.91-inch OLED display, offering higher resolution along with a wide viewing angle and low power consumption.

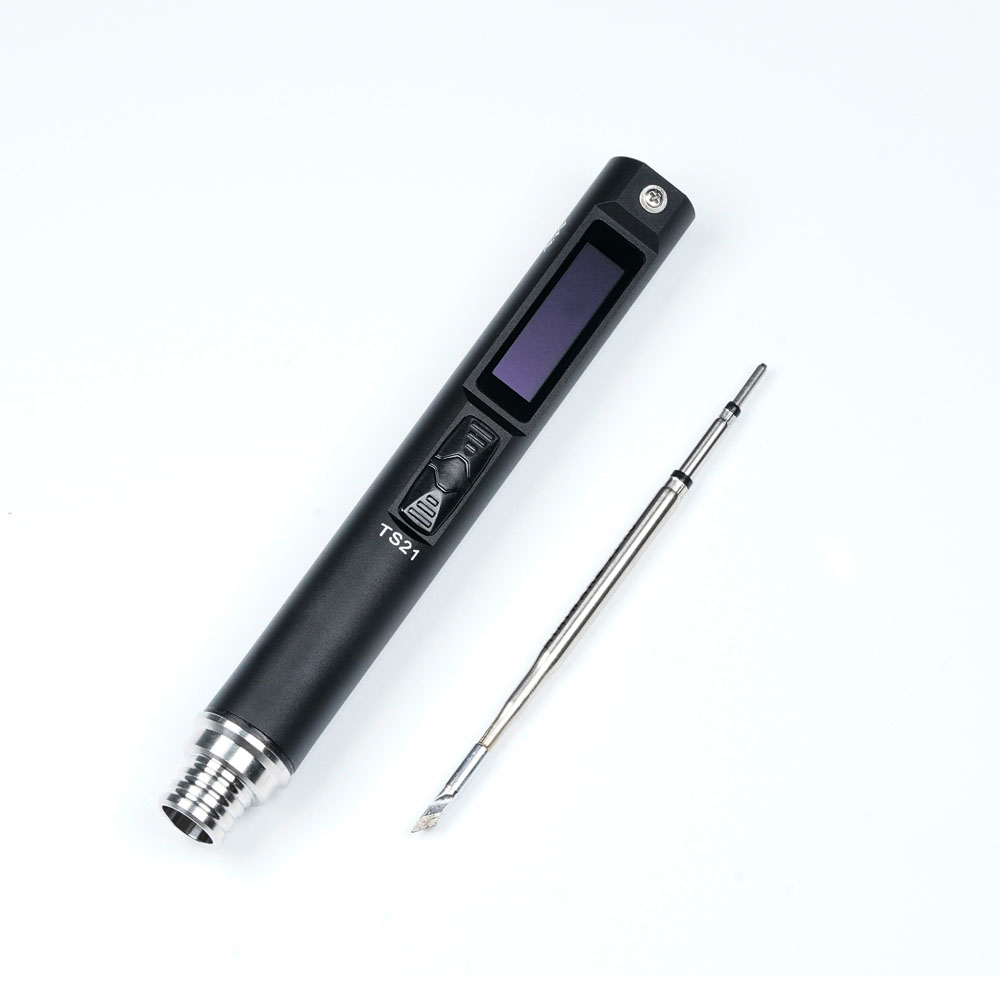

TS21 Precision Soldering Iron compatible with 210 series tips.
A heat shrink sleeve is introduced as an accessory, featuring corrosion and wear resistance. It comes in three classic colors—black, red, and green, allowing users to customize their soldering iron.

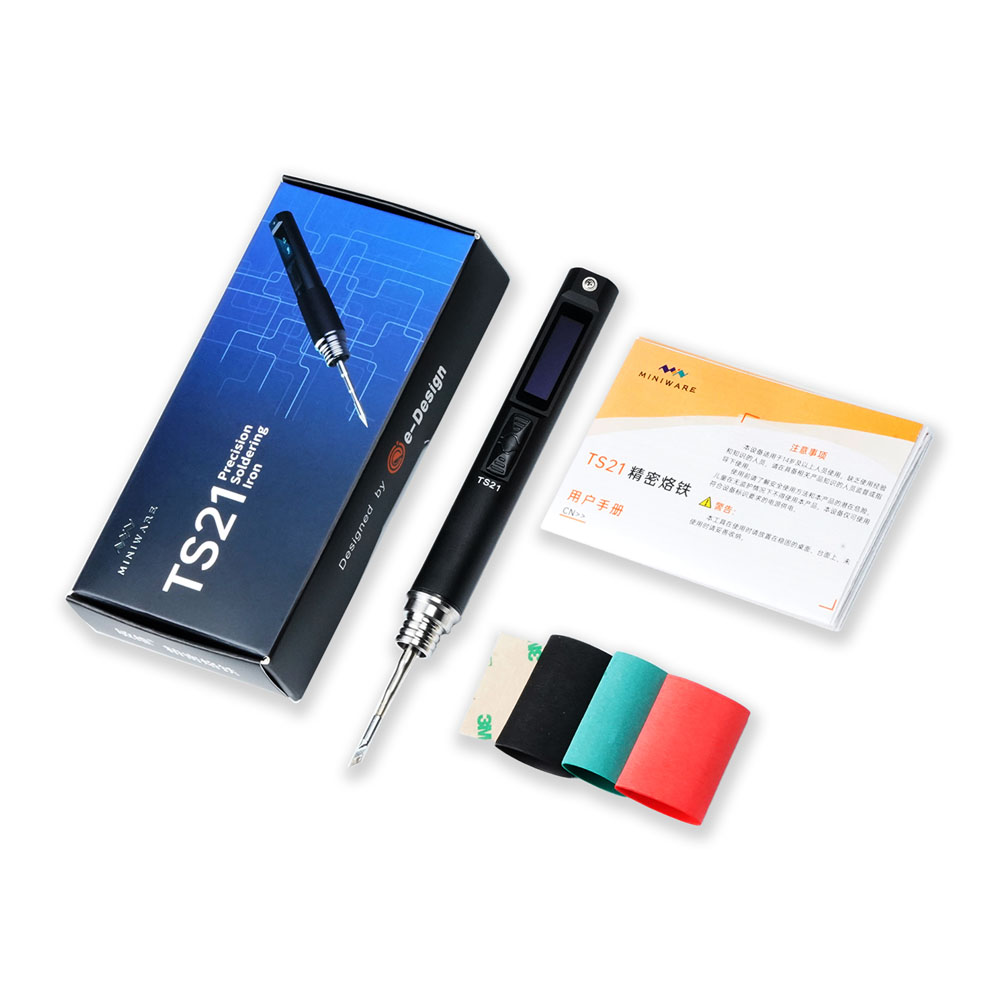

TS21 controller ✖ 1
Soldering tip（21-KU） ✖ 1
Heat shrink sleeve ✖ 3
User manual ✖ 1
Single Package Dimensions：130mm ✖ 60mm ✖ 25mm
| Working Voltage and Power Range |
PD Protocol 9-20V, 18-100W DC 9-24V，36-60W |
Temperature Stability | ±3% |
| Temperature Range | 50°C~450°C（Max） |
| Screen | OLED display | Controller Size | φ14 x 109mm |
| Interface | USB Type-C (DC power requires an adapter) | Weight | 32g（Controller+Tip） |
| Product certification | CE FCC UKCA ROHS | Data transmission interface | USB Type-C |
