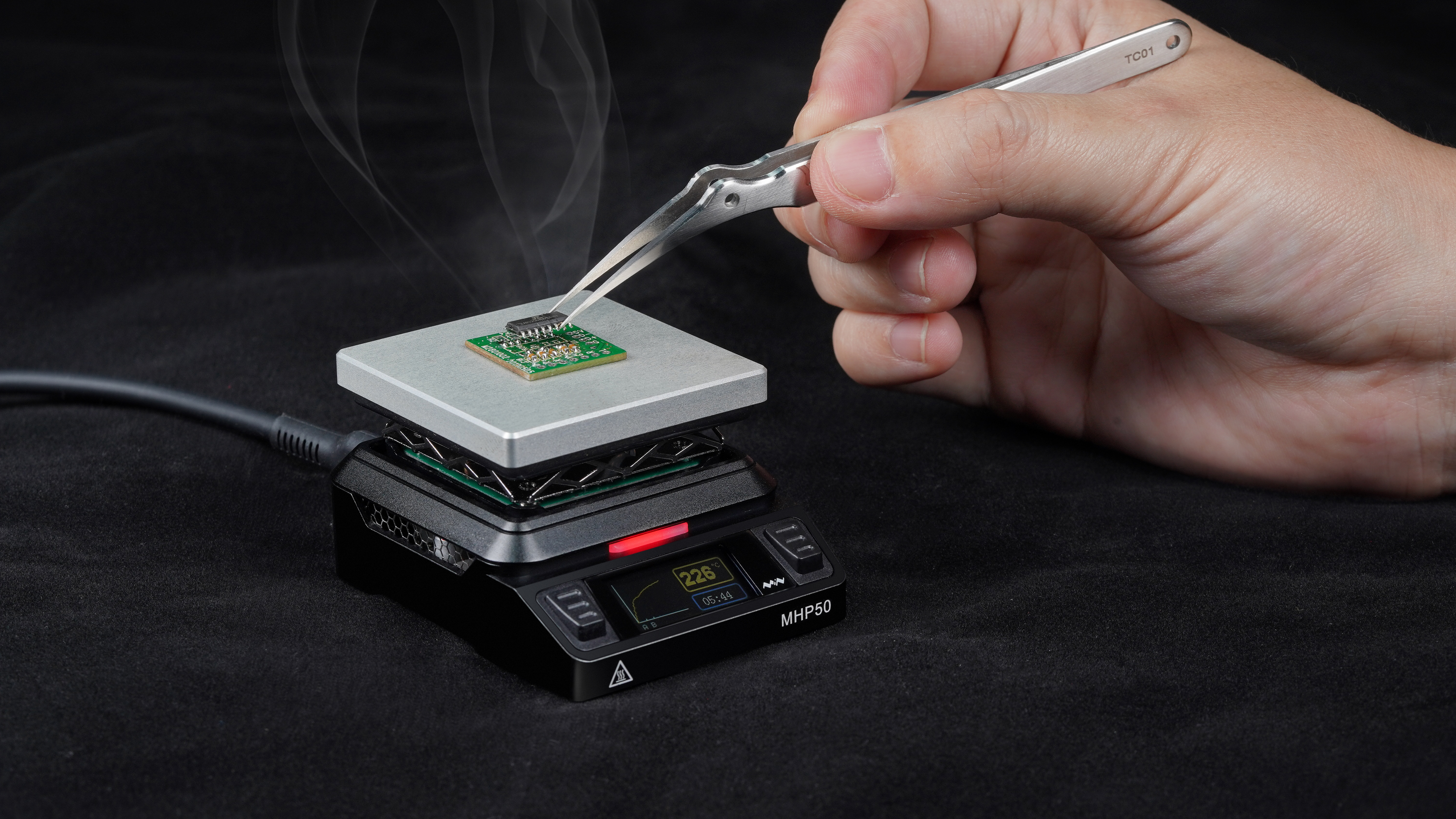

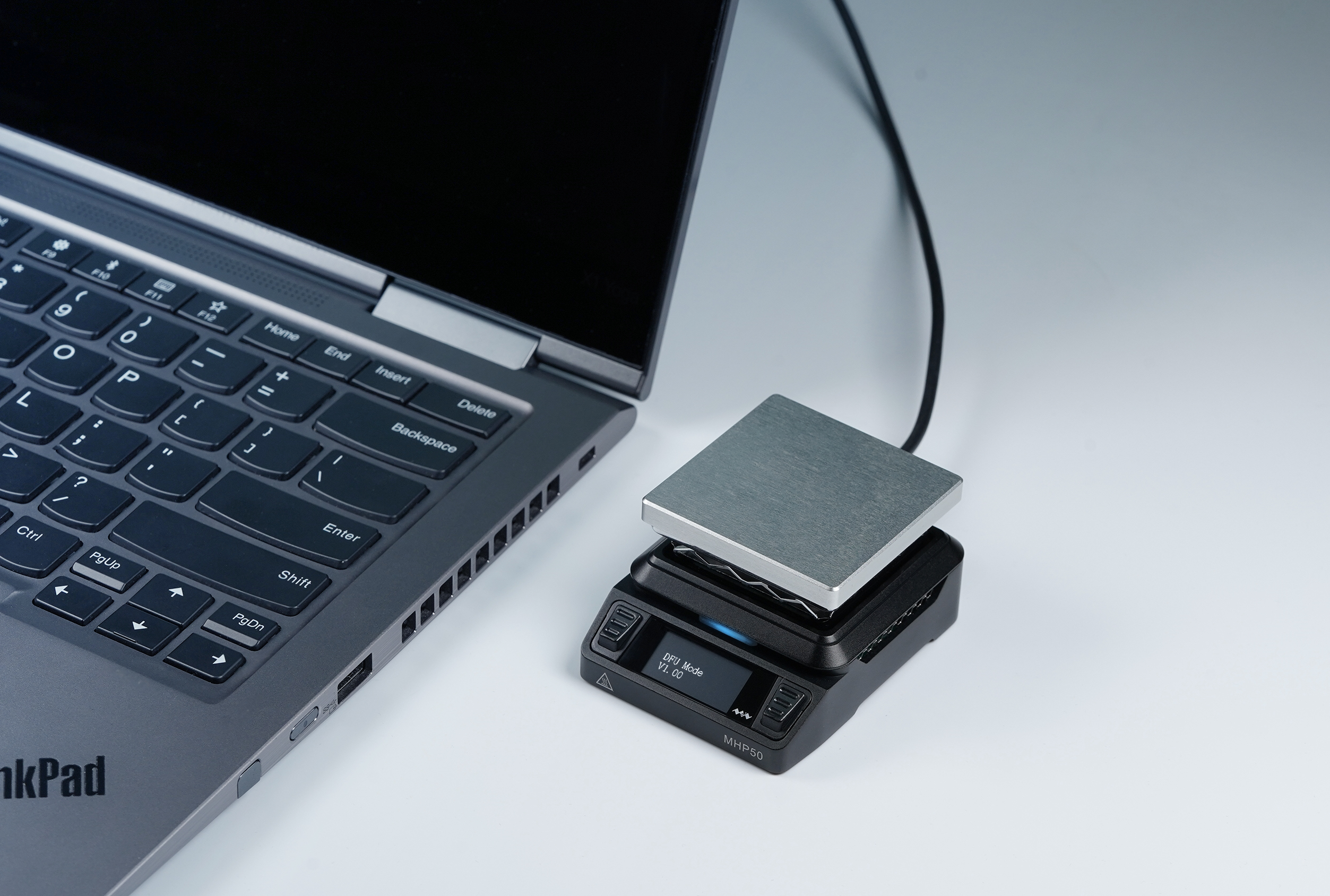

5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios;
Aluminum alloy heating body, a classic material and evenly heated;
Separable controller and hot plate, flexible to replace;
Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation;
Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage;
Innovative heating curve function, you can customize the heating temperature and duration by sections to achieve similar reflow soldering effect;
160*80 resolution color LCD display, clear and rich parameter display;
Built-in OLED display and true color LED, light color changes with heating temperature;
Dual-mode power inputs: DC 5525 power jack for 19-24V input upto 150W; standard PD 20V power input to reach 100W;
Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input);
MHP50 also has smart modes such aspreset temperature, overturn protection, brightness adjustment and automatic sleep.

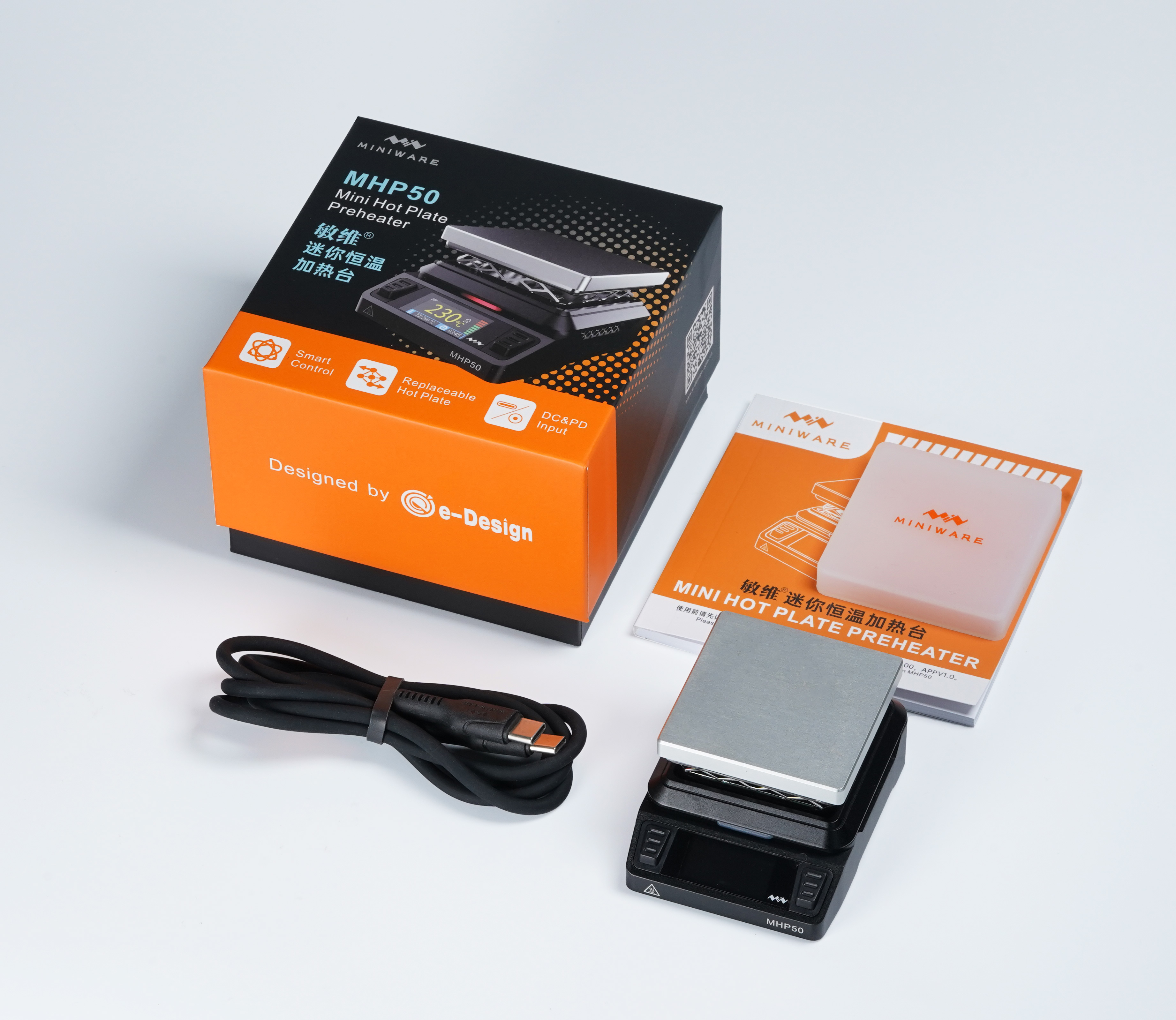

MHP50 Controller ✖ 1
Hot Plate（AL50） ✖ 1
Type-C-C Cable ✖ 1User Manual ✖ 1
Gross Weight：302g (including package)

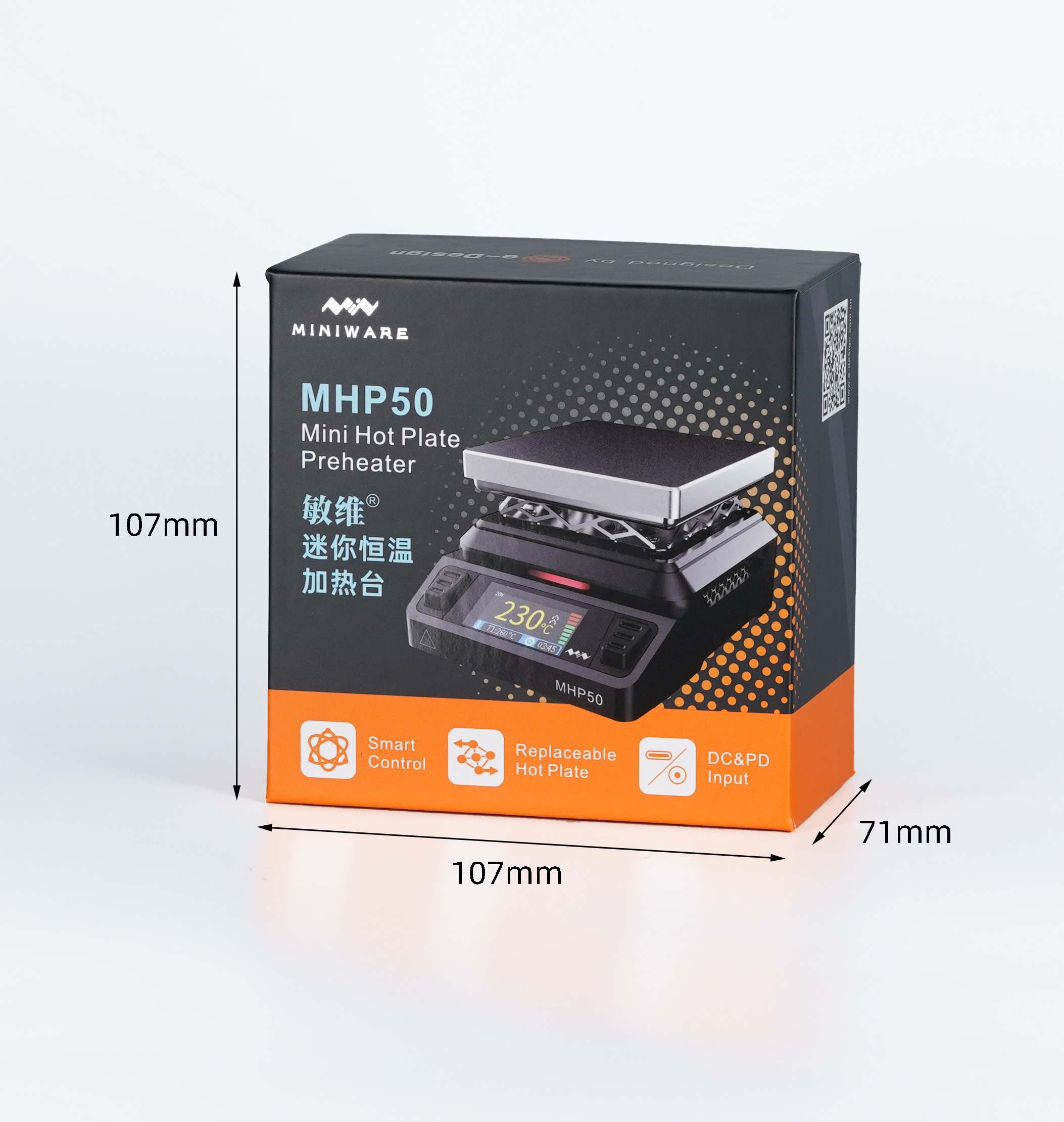

Package Size：107mm ✖ 107mm ✖ 71mm
| Power |
DC5525 150W (Max) PD 100W (Max) |
Power Input | DC5525 19-24V / PD20V (Use only one input) |
| Temperature Stability | 3% | Resistance to Ground | ＜2Ω |
| Temperature Range | 100°C~350°C(Max) | Heating Area | 50mm✖50mm |
| Screen | LCD display | Product Size |
Controller: L71.5mm✖W55.5mm✖H22.5mm Hot Plate: 50mm✖W50mm✖H29mm |
| Power Interface | USB Type-C-C Port | Net Weight |
Controller: 78g
|
| Certification | Compliant with EU Certification CE FCC UKCA | Data Transfer Interface | USB Type-C-C Port |
