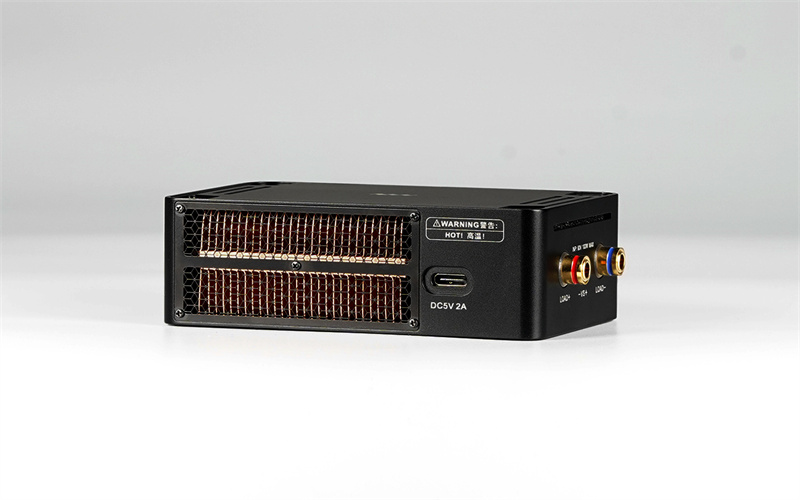

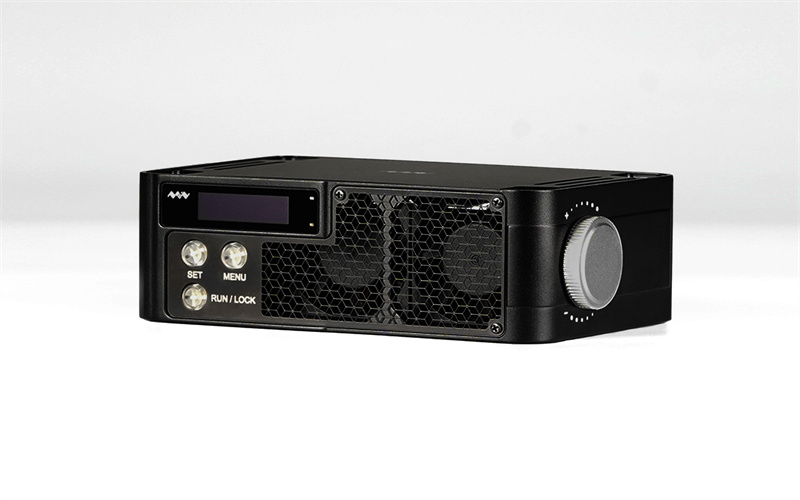

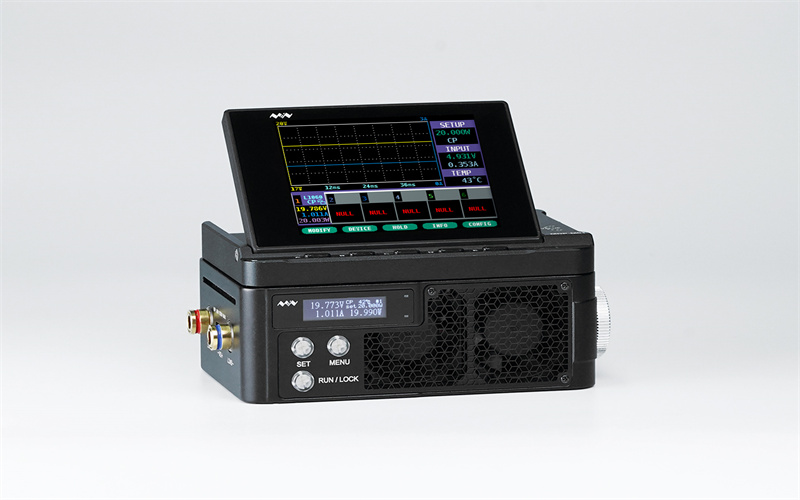

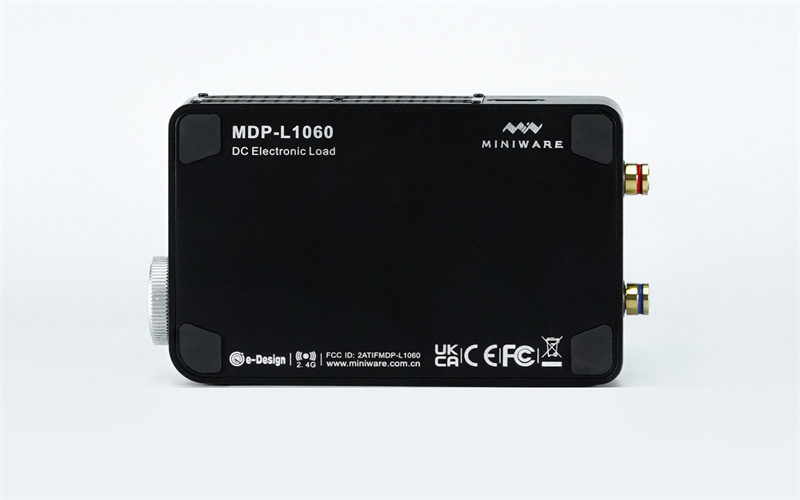

DC Electronic Load MDP-L1060 is the first programmable intelligent DC electronic load module of MDP (Mini Digital Power System) series.
MDP-1060 has four working modes as constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP).
It can test 60V 10A, up to 100W load input, and provide over-voltage (OVP), under-voltage (UVP), over-curent (OCP), over-power (OPP), over-temperature (OTP), Anti-Reverse (polarity) and other comprehensive intelligent safety protection functions.
It is a portable smart solution for various test scenarios of AC/DC power supplies, DC/DC converters, charaers, batteries, adapters and power electronic components.

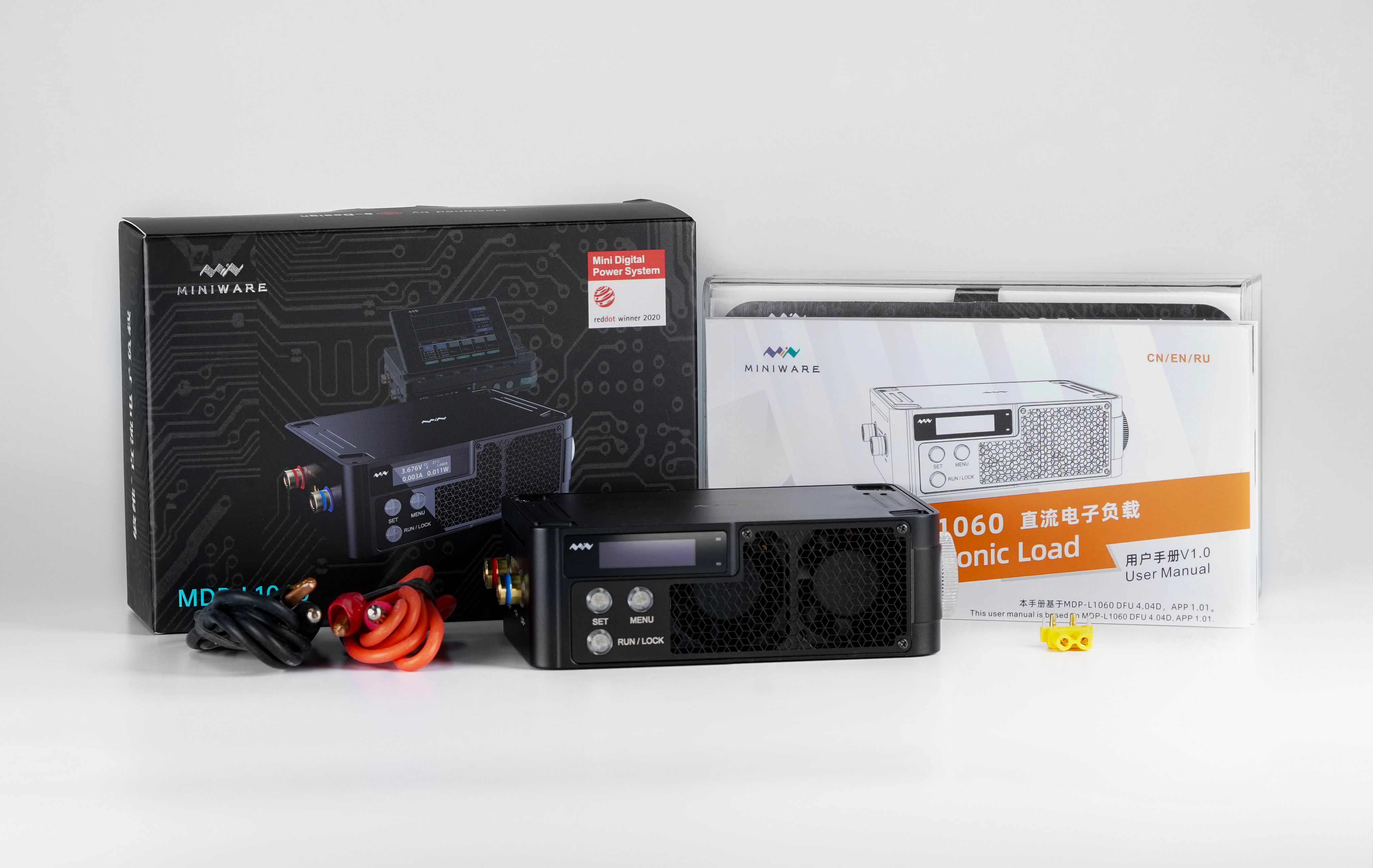

Electronic Load MDP-L1060 ✖ 1
XT30 Female Connector ✖ 1
Input Cable (4.0mm Banana to Alligator) ✖ 2
User Manual ✖ 1
Weight：508g

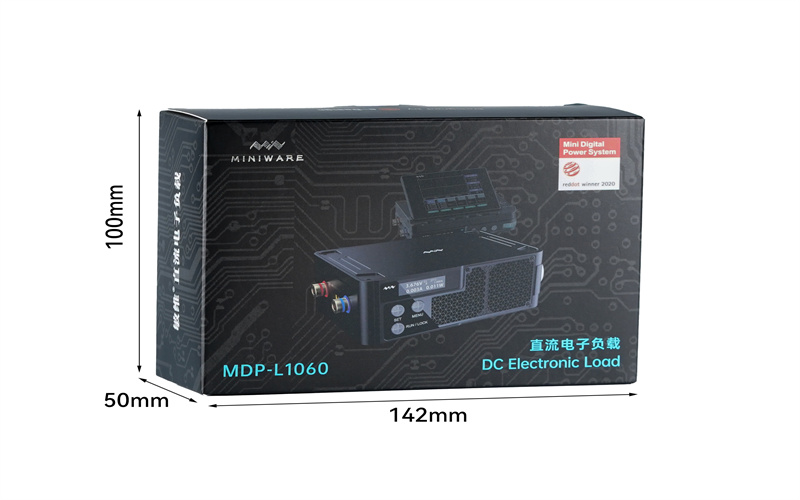

Package Size：142mm ✖ 100mm ✖ 50mm
| Power Input | DC 5V 2A |
Battery Capicity | 650mAh |
|
Maximum load input voltage |
60V |
Maximum load input current |
10A |
|
Safety Protections |
Over voltage protection (OVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), Under-voltage protection (UVP), anti-reverse protection |
Maximum load input power |
100W |
| Data Transfer Interface | USB TYPE-C | Net Weight | 330g |
| Certification | Compliant with EU Certification CE FCC |
