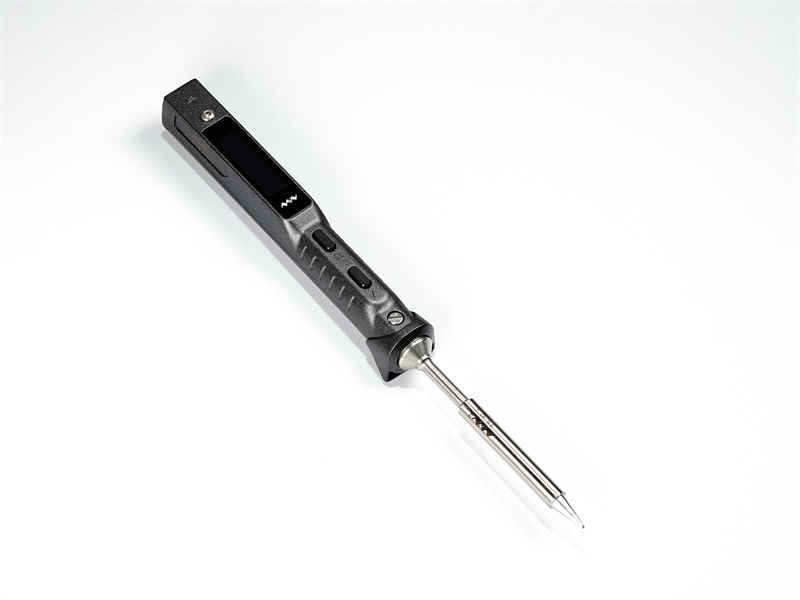

TS101 controller has a sharp and tough overall appearance, and uses a larger 128*32 pixel OLED screen to display more heating data.

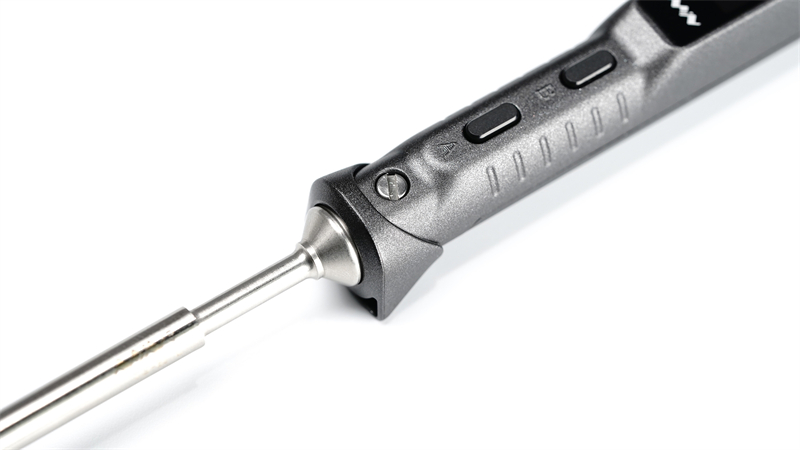

The classic A-B button operation continues the TS100 operation habit and reduces user’s learning cost. The tip insertion end of controller fixes the soldering tip with a ball screw, no hex screw to loosen before inserting and removing a tip.

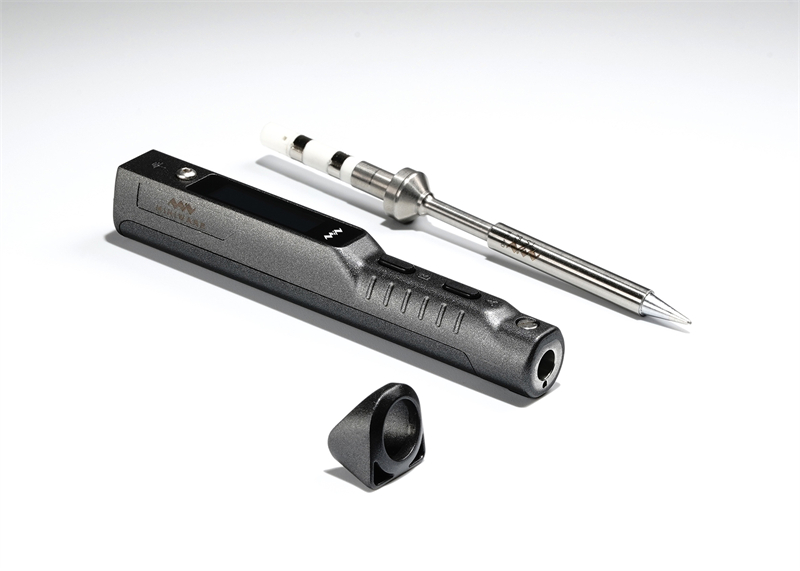

A new convenient and practical accessory--an anti-slip cap, looking like the head of a cat, can not only be used as a simple stand to support the iron and prevent it from rolling, but also be used for finger anti-slipping and removing the soldering tip.

Smart Soldering Iron TS101 uses DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrade, and a standard PD power input up to 45W.

The temperature adjustment range has also been optimized to 50-400℃ for more application scenarios. In terms of intelligent operation, TS101 has more detailed menu setting items, and the newly added “Boost” heating function can quickly heat up in a short time to meet the welding needs of special scenes.

TS101 and TS100 use the same soldering iron tips, so your existing TS100 soldering tips can continue to be used to this upgrade version iron.
