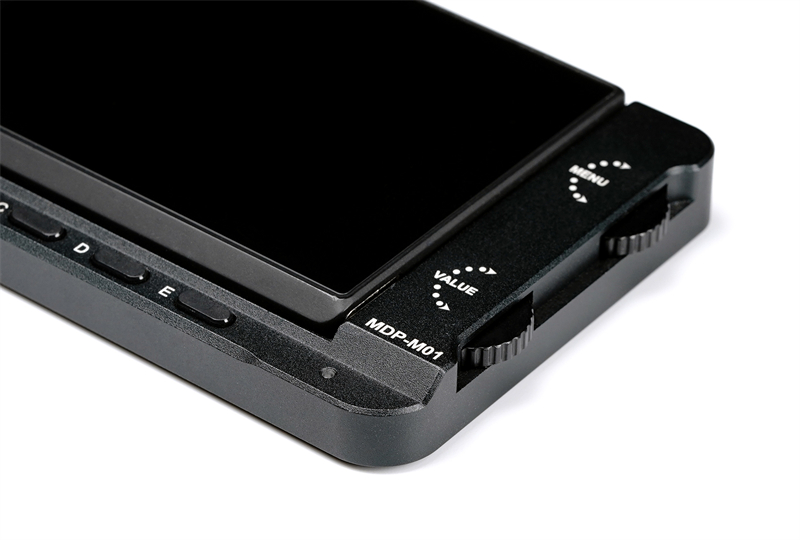

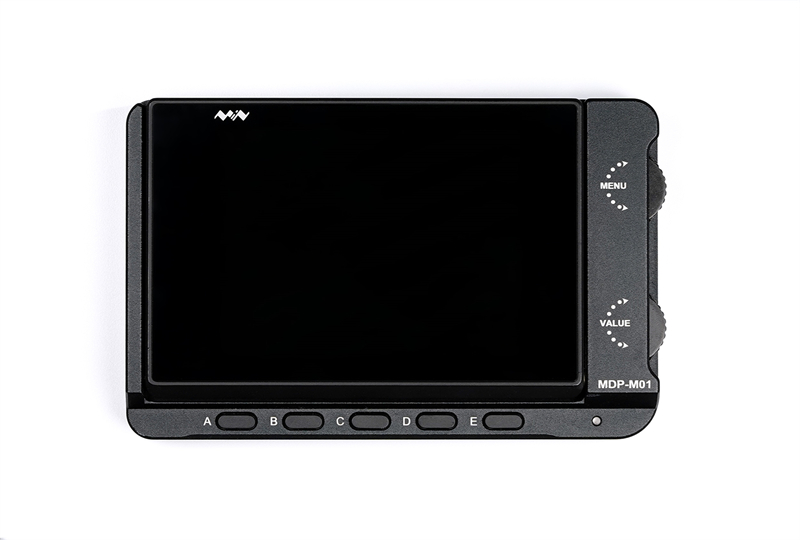

MDP-M01
MDP-M01 is a display control module equipped with a 2.8-inch TFT display screen;

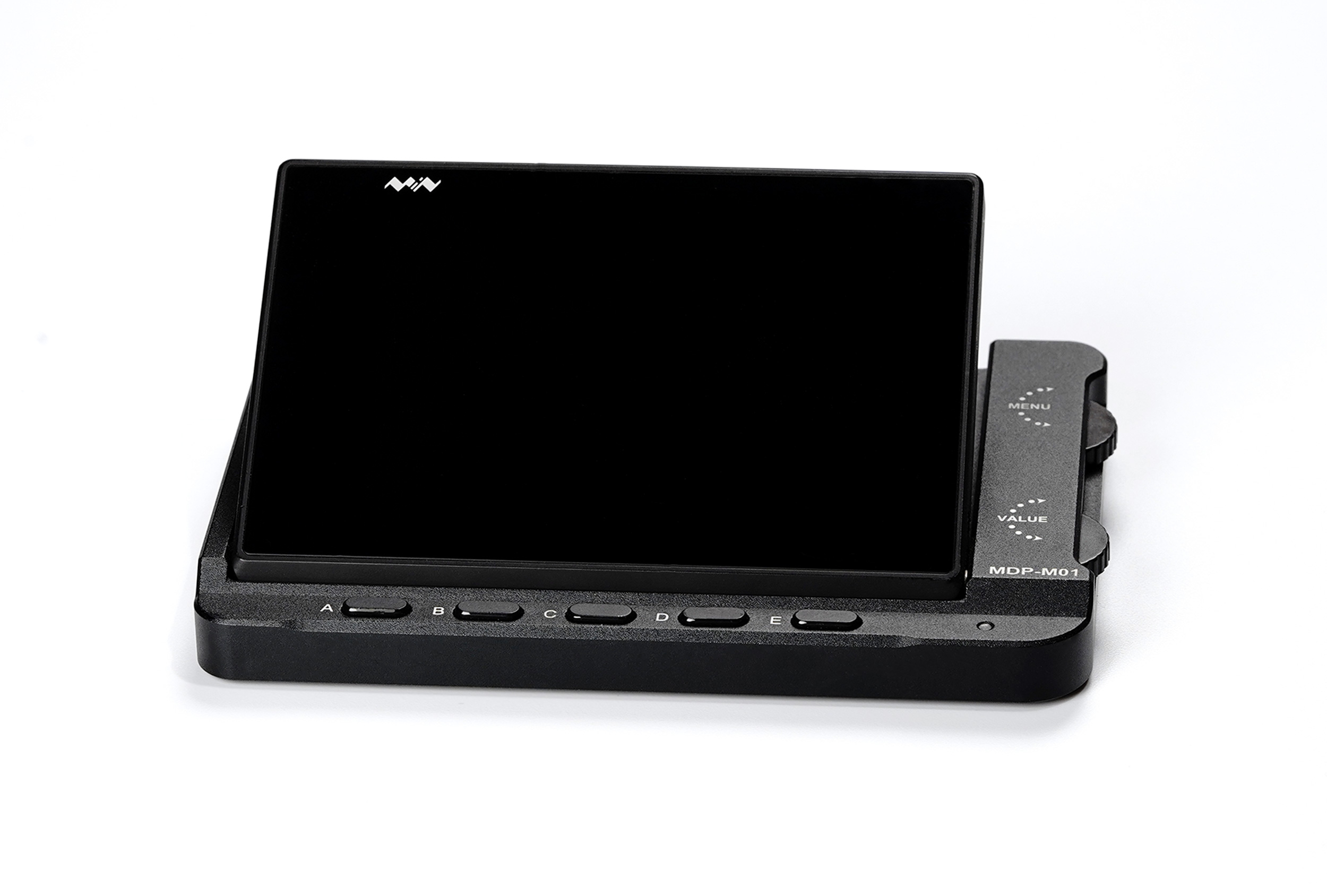

The screen can beturned 90degrees, which is convenient forusers to view data;

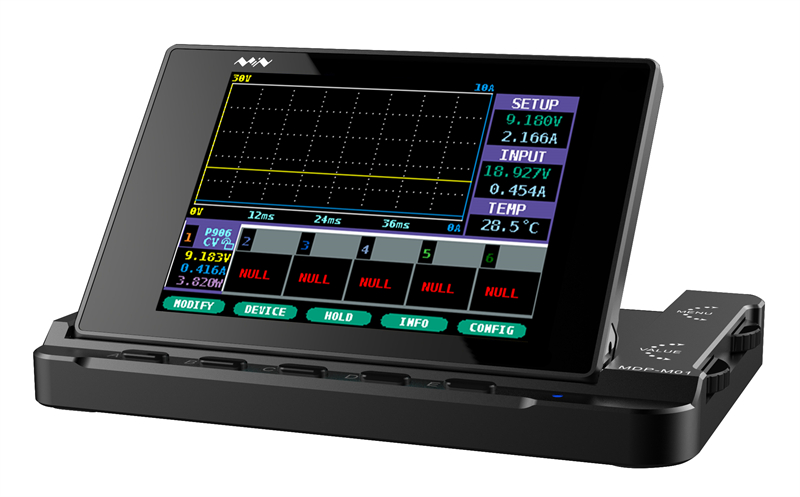

MDP-M01 can realize online display and control with MDP-P906 mini digital power supply module and other modules of MDP system through 2.4G wireless communication;
And can control up to 6 sub-modules at the same time;
Provide computer-side host computer program. (Download)

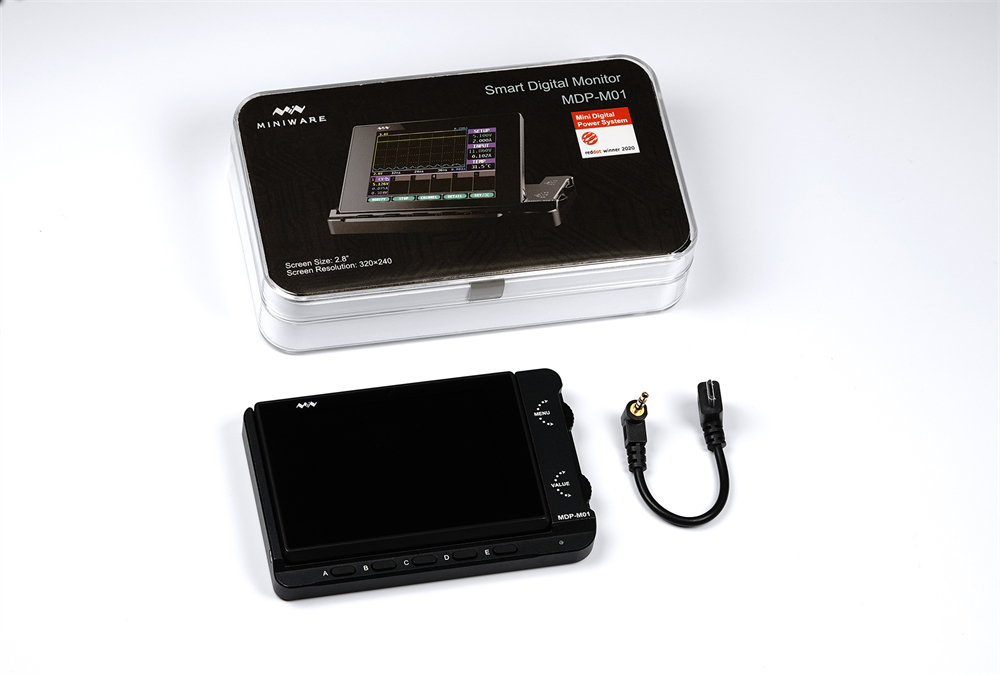

CONTENTS
MDP-M01 Digital Power Supply ✖ 1
Output Cable✖ 1
Safety Instructions ✖ 1
PACKING SPECIFICATIONS
Gross Weight：205g（including package）
Package Size：140mm ✖ 35mm ✖ 82mm
MAIN PARAMETERS
| Screen Size | 2.8-inch TFT display screen |
Screen Resolution | 240*320 |
| Input | 3.6~5.5V，0.1A |
Controllable Channel Number | 6 |
| Size | 101.5mm*64mm*12mm | Weight | 133g |
