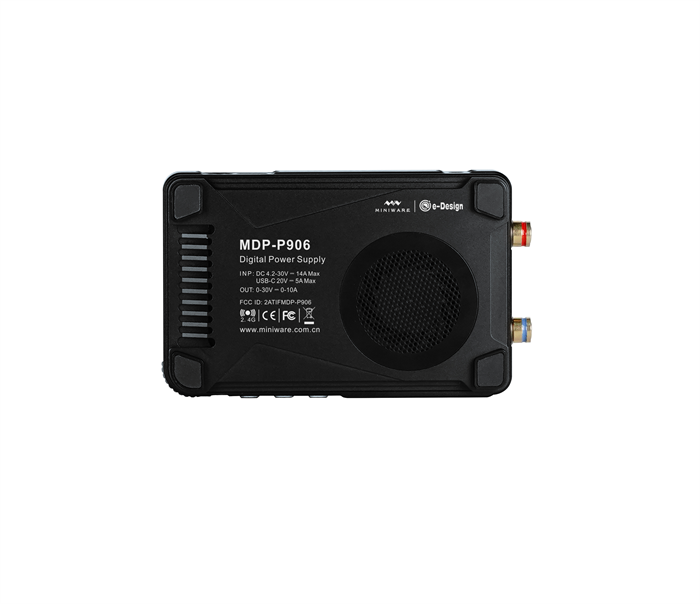

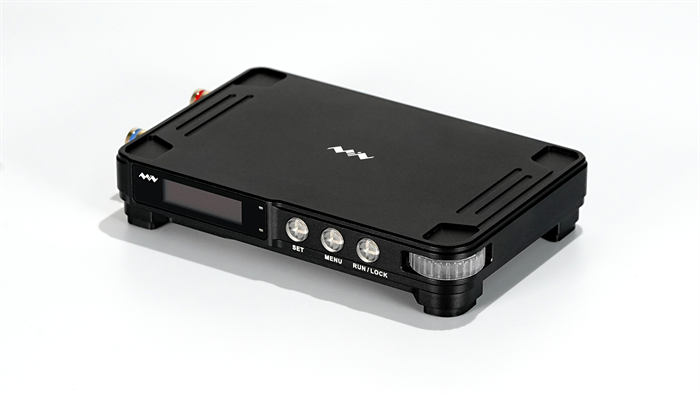

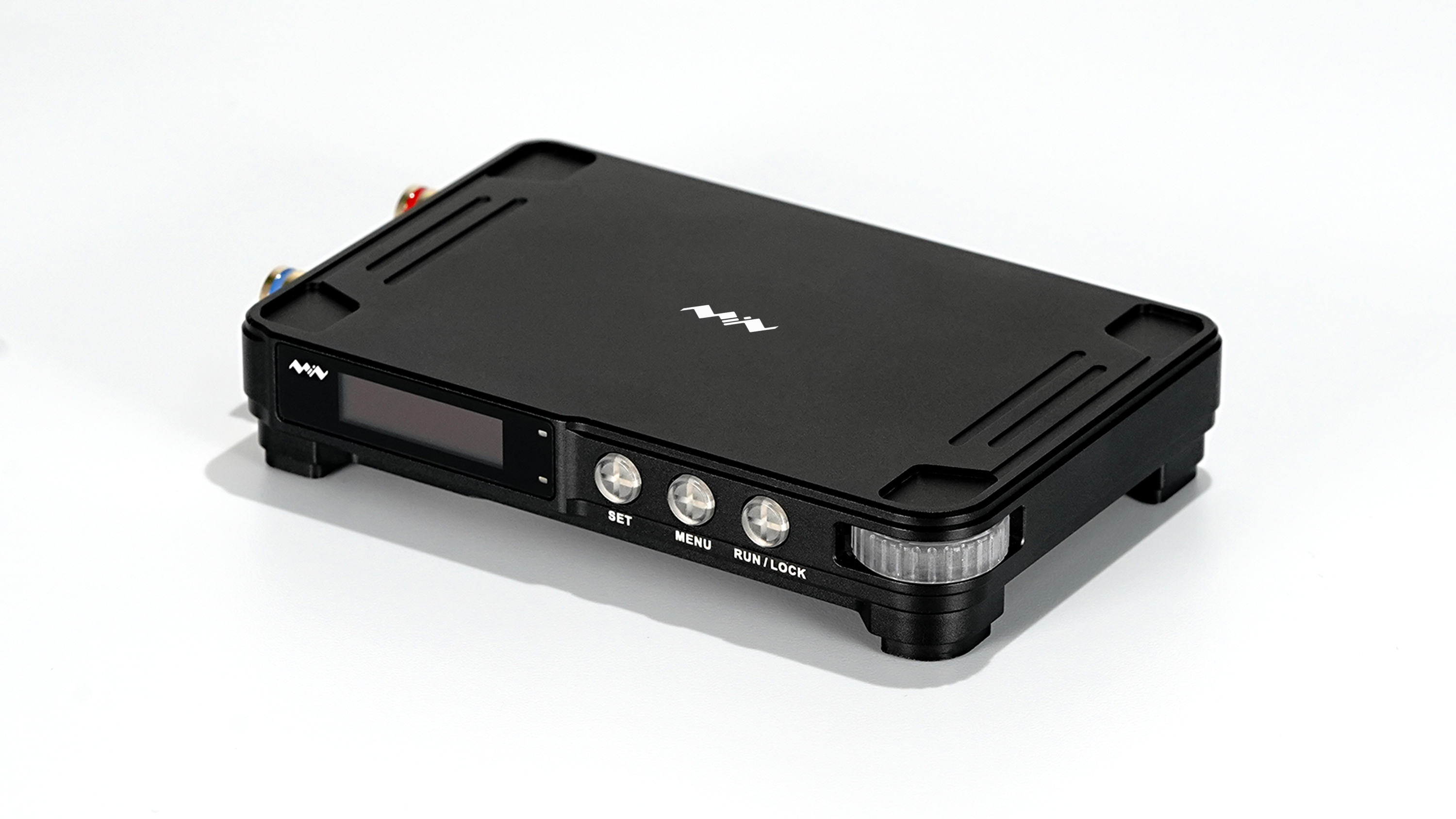

MDP-P906 is the second digital power supply module of MDP series, following MDP-P905；

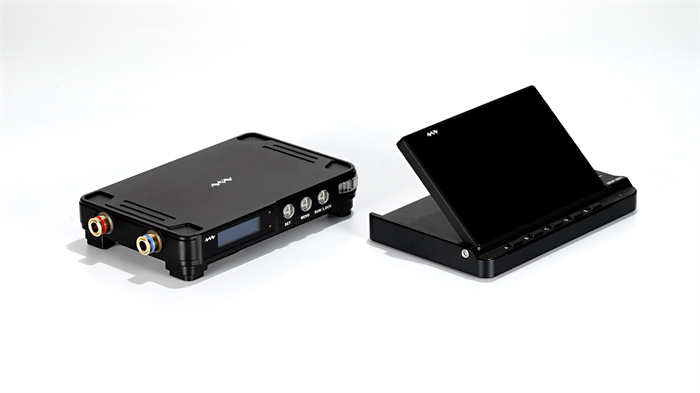

2.4G wireless connection, supporting wireless connection to Display Control module；
95% High efficiency programmable linear output, max 300W power output；
Built-in low noise & high-speed cooling fan；
Ultra high-speed transient response & ultra low ripple and noise；
Support multiple in-series and in-parallel connection to output higher voltage；
Support firmware upgrade

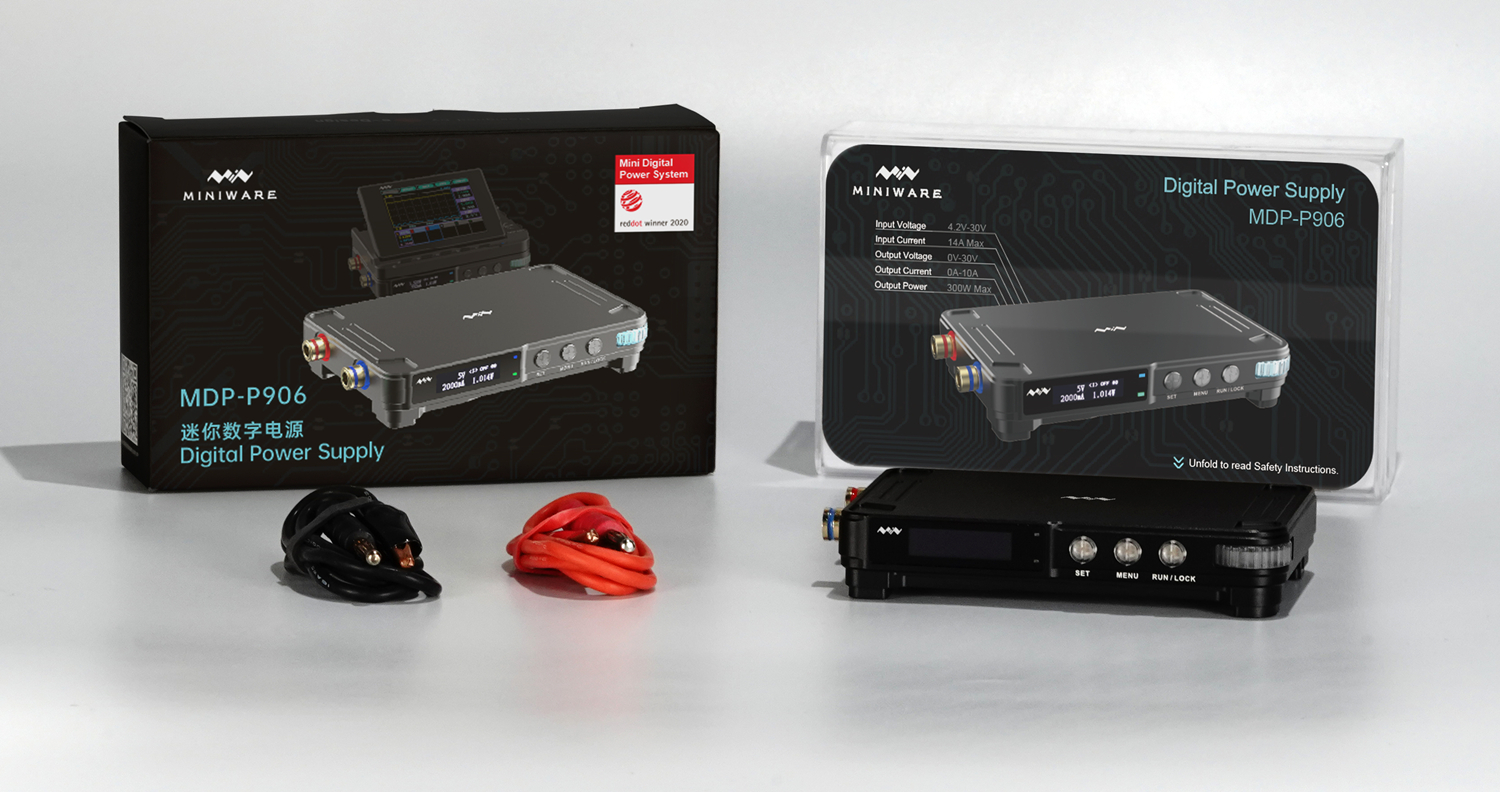

MDP-P906 Digital Power Supply ✖ 1
Output Cable✖ 2
Safety Instructions ✖ 1
Gross Weight：333g（including package）
Package Size：141mm ✖ 44mm ✖ 88mm
| Input |

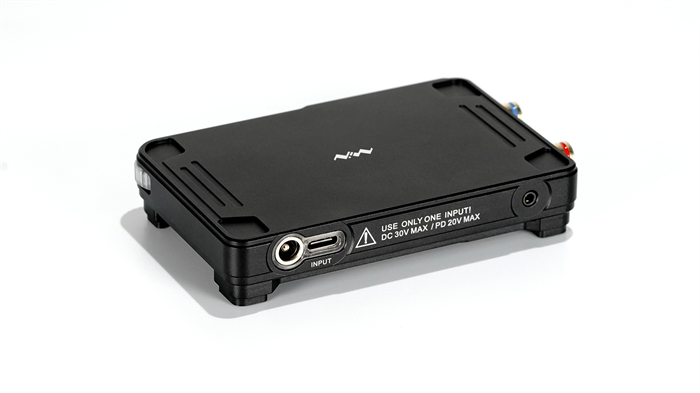

DC4.2V-30V 14A (Max), QC3.0/PD2.0 20V 5A (Max) |
Output |
0-30V 0-10A 300W (Max) |
| Adjustment Rate |
Load Adjustment Rate <±0.01^% Power Adjustment Rate <±0.01^% |
Ripple and Noise |
＜250uVrms, 3mVpp; ＜2mArms |
| Transient Response Time | ≤4uS | Output accuracy |
0.03%+5mV, 0.05%+2mA |
| Protection |
Input over-voltage, under-voltage, reverse connection protection, output over current, back-flow protection and over temperature protection |
Others |
Automatically shut down and enter micro-power mode； Support USB firmware upgrade |
| Data Transfer Interface | Micro USB Port | Net Weight | MDP-P906 181g |
| Certification | Compliant with EU Certification CE FCC |
