LA104

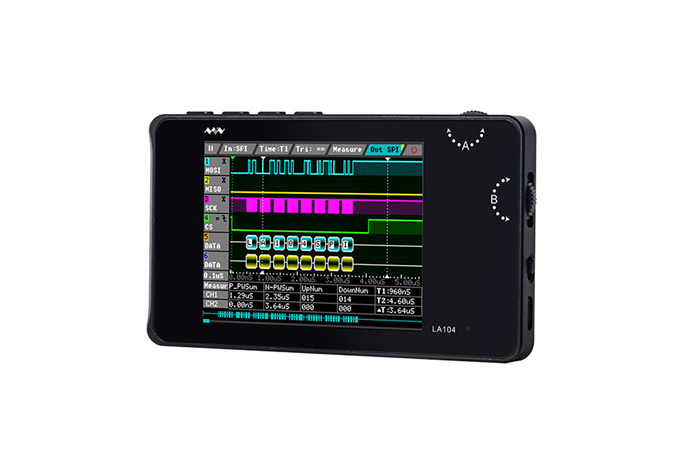

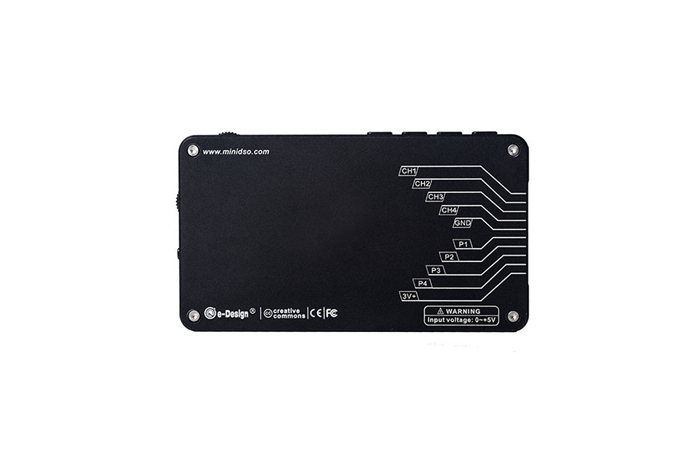

LA104 is small and portable, easy to use and carry;
It is an instrument that analyzes the logical relationship of a digital system;
It can collect and store multi-channel digital signals and visually display the timing relationships of these signals on the screen;
2.8 inch TFT LCD screen makes reading data faster and easier;
It also has protocol analysis function, which can parse the logic signal of protocol physical layer into high-level protocol data and display it;
It can be widely used in automotive electronics, communications, power, computers and other industries.
CONTENTS

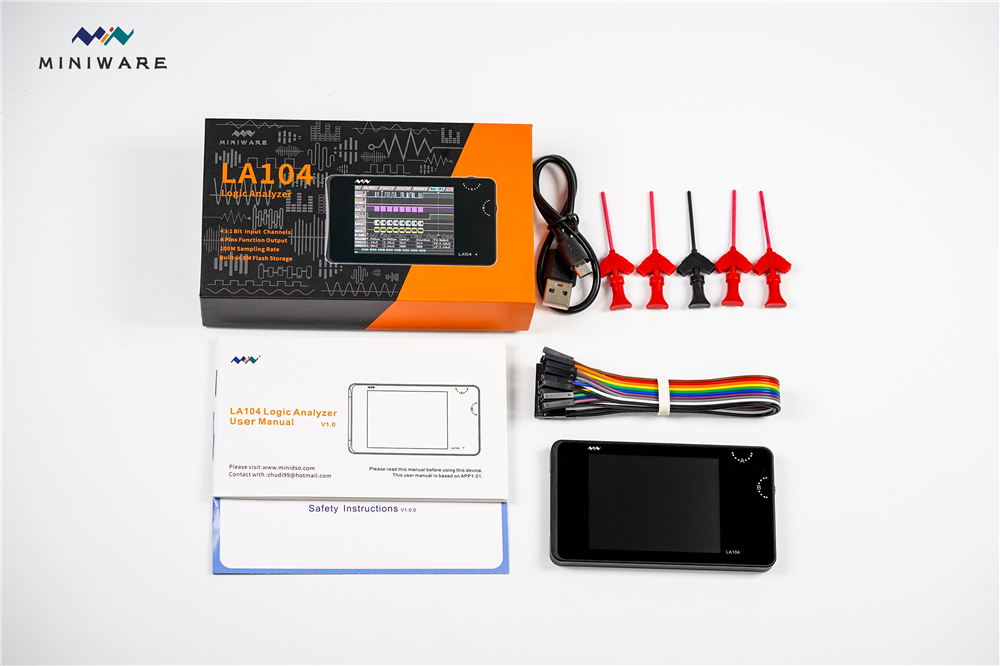

LA104 Logic Analyzer ✖ 1
10-Pin Color-coded Cable ✖ 2
Micro-Gripper Hooks ✖ 5
USB Cable ✖ 1
User Manual ✖ 1
PACKING SPECIFICATIONS
Gross Weight：223g（including package）

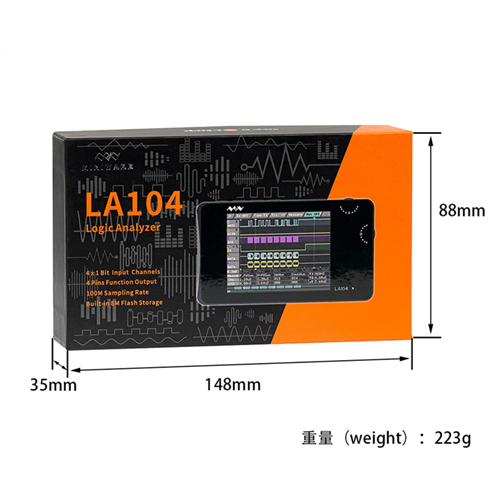

Package Size：148mm ✖ 88mm ✖ 35mm
MAIN PARAMETERS
| 3V Out Put Channel | 1 | Minimum Capture Pulse Width | 10ns |
| Input Channels | 4 | Input Impedance | 1mΩ |
| Output Channels | 4 | Max Sample Rate | 100MHz |
| Mode | SPI、I2C、PWM |
PRODUCT SPECIFICATIONS
| Screen Size | 2.8'' | Net Weight | 83g |

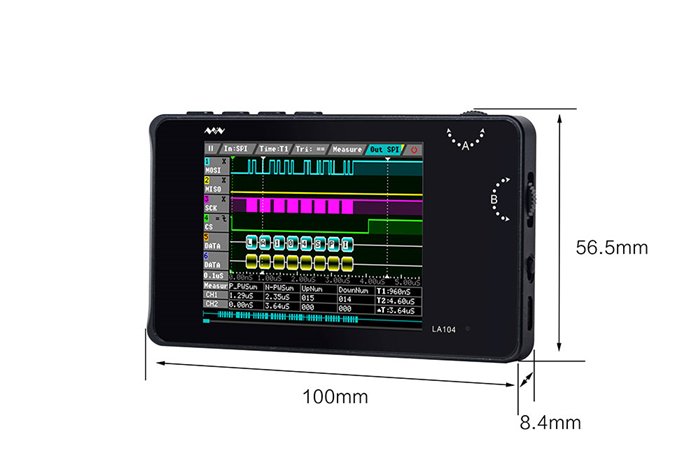

| Dimension | 100mm ✖ 56mm ✖ 8.6mm | Screen Resolution | 320 ✖ 240 |
| Storage | 8MB USB Flash Disk Memory | Battery | 500mAh |
| Certification | Compliant with EU Certification CE FCC |
