MDP-XP consists of a display control module and a digital power module. Through 2.4G wireless connection, it achieves multichannel free combination at the power of 90W per channel;
MDP-XP is a high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional power supplies;
It also provides programmable output, timing output, sequential control, automatic compensation and other powerful functions, so as to meet diversified testing needs;

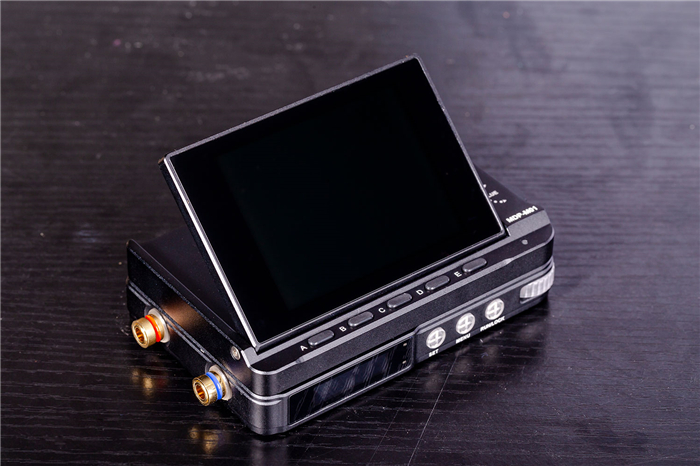

Display Control Module: equipped with a 2.8-inch TFT screen, it can display the voltage-current waveform in real time, support data statistics, and automatically pair with and control six sub-modules (digital power modules), with dual thumb wheels and 90-degree scrolling user-friendly design;
Digital Power Module: high efficiency linear output, 0.25mV ripple wave, high-speed transient response, and supporting precise fine-tuning;
Automatically shut down and enter micro-power mode;
Support USB firmware upgrade and user calibration.

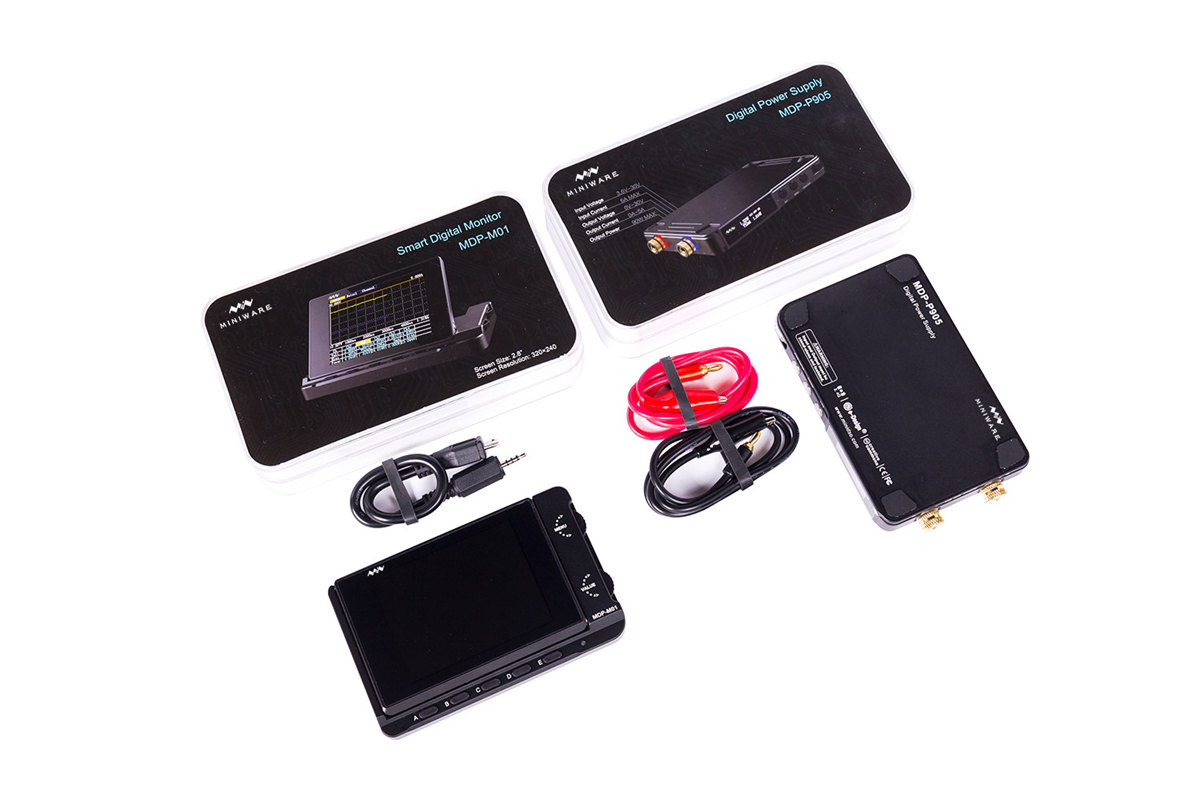

MDP-M01 Smart Digital Monitor ✖ 1
MDP-P905 Digital Power Supply ✖ 1
Output Cable（4.0mm Banana to Alligator）✖ 2
Safety Instructions ✖ 1
Gross Weight：469g（including package）

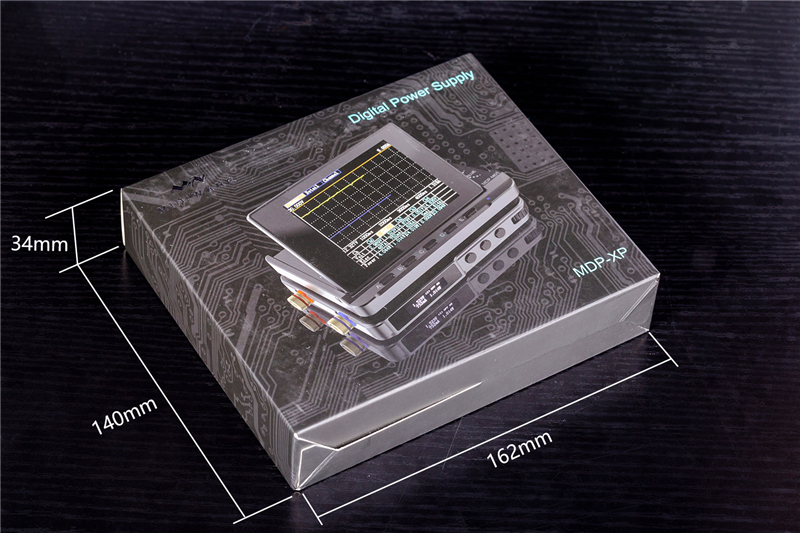

Package Size：162mm ✖ 140mm ✖ 34mm
| Input |

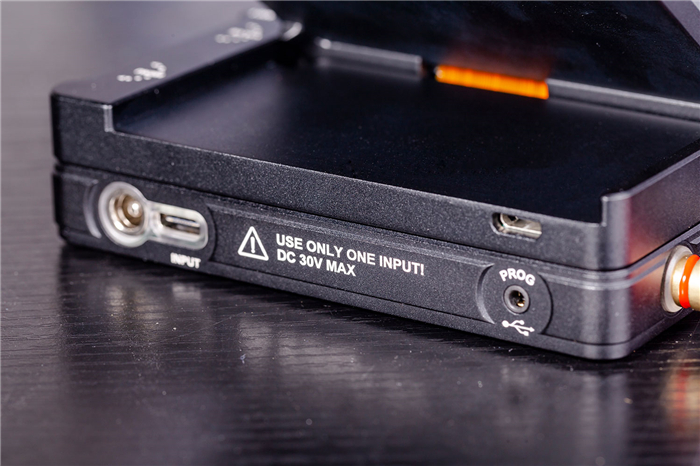

DC4.2V-30V (After startup 2.7V), 100mA-6A, Support QC3.0 |
Output | 30V / 5A , 90W |
| Adjustment Rate |
Load Adjustment Rate < ±0.01^% Power Adjustment Rate < ±0.01^% |
Ripple and Noise | 250uVrms / 3mVpp |
| Transient Response Time | ≤4uS | Line Loss Compensation Range | 5mR - 100mR |
| Protection |
Input Over-voltage，Under-voltage，Anti-reverse， Output Anti-backflow，Over Temperature |
Data Record |
Max Storage: 7MB Max Recording Time: 24 Hours |
| Data Transfer Interface | Micro USB port | Net Weight |
MDP-M01 133g MDP-P905 143g |
| Certification | Compliant with EU Certification CE FCC |
