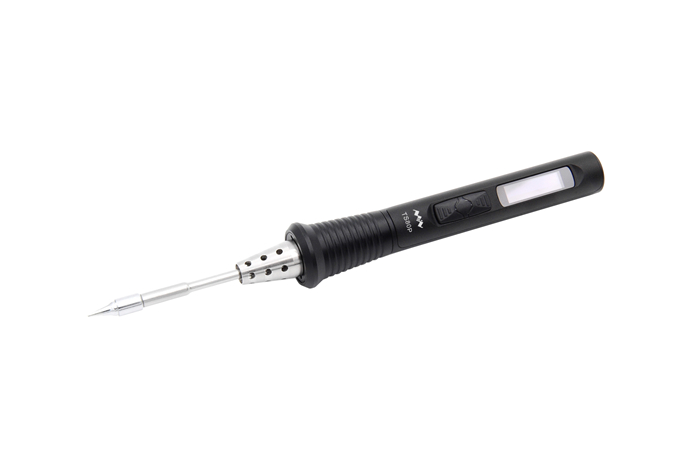

TS80P controller is made of aluminum alloy through CNC into a compact structure and high-tech design, ergonomic, beautiful and fashionable.;
TS80P is a smart soldering iron powered by USB Type-C PD2.0/QC3.0 standard input, which can be powered by charging plugs, power banks and mobile power supplies that comply with PD2.0 (12V 3A)/QC3.0 (9V 2A) standard;
Its output power has been increased from 18W to 30W max, with an 8-second heating time at fastest from room temperature to 300℃, meeting a wider range of soldering;
It features a brand new easy-push tip fastener, which provides a best holding experience and an easy push to loosen the soldering tip for quick replacement;
With a built-in smart chip, TS80P can smartly control the rise and fall of tip temperature;
Adopt safety circuit design, anti-static structure, usage safe;
Have sleep mode and automatic over-heating warning；
Through edit the parameter file, custom your own temperature curve and buttons function;
Open source for writing your own App.

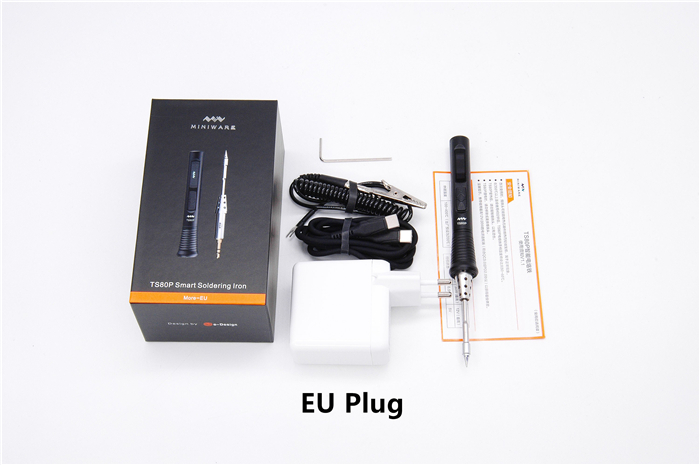

TS80P Controllor (Black Color) ✖ 1
Soldering Tip B02 ✖ 1

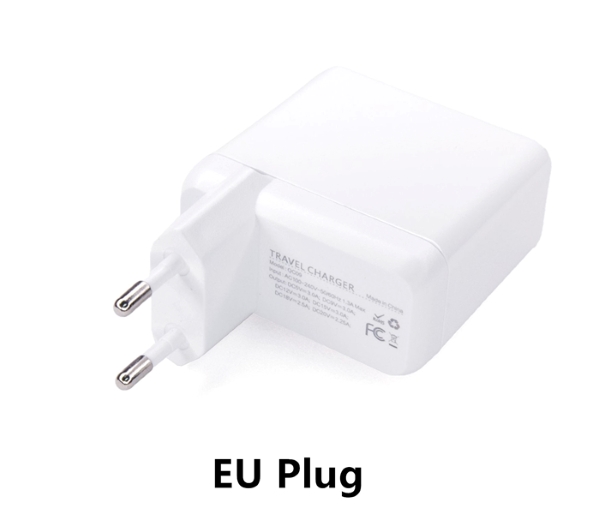

PD Power Plug (US / EU) ✖ 1
Silicone Type-C Cable ✖ 1
Ground Wire ✖ 1
Hex Key ✖ 1
Safety Instructions ✖ 1
Gross Weight：316g (including package)
Package Size：135mm ✖ 77mm ✖ 61mm
| Power | 30W (Max) | Max Operation Ambient Temperature | 40°C |
| Temperature Stability | ±3% | Soldering Tip Resistance to Ground | <2Ω |
| Temperature Range | 100°C~400°C(Max) |
| Screen | OLED Screen | Control Part | Length 96mm |

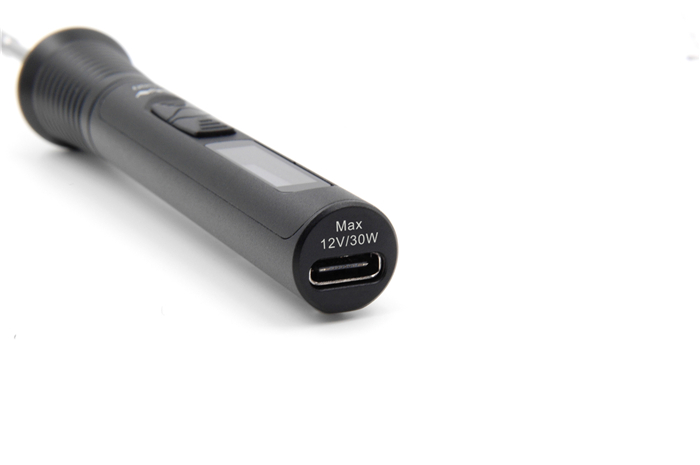

| Power Interface | USB Type-C Port | Net Weight | 38g (Control Part) |
| Certification | Compliant with EU Certification CE FCC | Data Transfer Interface | USB Type-C Port |
| Input | 9V/2A（QC 3.0）/ 12V 3A（PD2.0） |
